What You'll Learn

• What Total External Static Pressure is and how it relates to airflow through the system
• How measureQuick measures and calculates TESP from two measurement points
• What the rated maximum TESP means on equipment datasheets
• Why 70%+ of tested systems exceed 0.5" TESP, and what that tells you
• How measureQuick evaluates TESP pass/fail against the equipment's rated maximum
• What causes high static pressure and where to look first
• How TESP connects to the static pressure budget and the 140% rule (E11)

What You'll Need

• Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
• Account: measureQuick account with active subscription
• Manometer probes: One of the following, paired with measureQuick via Bluetooth:
  • Fieldpiece JL3KM2 (JobLink Manometer)
  • UEi DPM Wireless Manometer or SPMKIT Static Pressure Kit
  • CPS Static Pressure Meter
  • Testo Smart Probes (static pressure capable)
  • Yellow Jacket YJACK MANO
• Static pressure tips and tubing: For drilling test ports if none exist
• Time: 10-15 minutes for measurement and evaluation

What Is Total External Static Pressure?

Think of it like blood pressure. Joe Medosch and David Richardson use this analogy in every training event: high static pressure is like high blood pressure. The blower motor is the heart of the system. If the heart is working against too much pressure, it could die early. Measuring static pressure is the first vital sign you should check.

Total External Static Pressure is the total pressure drop across the air handler, measured at the return and supply plenums. It represents the resistance the blower must overcome to push air through the duct system.

TESP is measured in inches of water column (inWC). The formula is simple:

TESP = |Return Static Pressure| + |Supply Static Pressure|

Return static pressure is negative (the blower pulls air through the return). Supply static pressure is positive (the blower pushes air through the supply). measureQuick takes the absolute values of both and adds them together.

Every air handler and furnace is rated for a maximum TESP. For most standard residential equipment, this is 0.5 inWC. Some high-static equipment is rated for 0.7" or 0.8". The rated maximum is printed on the equipment's performance data or can be found in the installation manual.

When measured TESP exceeds the rated maximum, the blower cannot deliver its rated airflow. The system is operating in a restricted condition.

Why TESP Matters: 70% of Systems Fail

measureQuick's V12 database of 115,706 quality-filtered cooling tests (and over 200,000 total diagnostic tests) shows that more than 70% of tested systems exceed 0.5" total external static pressure. This is one of the most common failures in the field.

High TESP means restricted airflow. Restricted airflow causes a chain of problems:

• Reduced cooling capacity. Less air across the evaporator coil means less heat transfer. The system runs longer to meet the thermostat setpoint.
• Frozen evaporator coils. Low airflow drops evaporator temperature below freezing, icing the coil.
• High head pressure. The condenser works harder to reject heat because the evaporator is underperforming.
• Compressor strain. High head pressure and low suction pressure increase compressor workload and shorten its life.
• Comfort complaints. Rooms run too warm, too cold, or too humid because the system cannot move enough air.
• Higher energy bills. Extended run times and degraded efficiency cost the homeowner money every month.

A system can have a perfect refrigerant charge and still underperform if the duct system is choking the airflow. TESP is the first measurement that tells you whether the air side is working.

As Jim Bergmann explains, measureQuick records "the total external static pressure" alongside superheat and subcooling as part of a complete commissioning assessment. In the gas furnace workflow, the 0.5" TESP limit is printed on the equipment label and used as the factory test condition. Static pressure is not an afterthought; it is a primary diagnostic alongside refrigerant charge.

How measureQuick Measures TESP

The Two Measurement Points

measureQuick calculates TESP from two manometer readings:

1. Return static pressure - measured in the return plenum, between the filter and the blower. This reading will be negative (typically -0.1" to -0.6" or more).
2. Supply static pressure - measured in the supply plenum, after the blower and any indoor coil. This reading will be positive (typically +0.1" to +0.6" or more).

The app takes the absolute value of each reading and adds them:

Example:
  Return static:  -0.22 inWC
  Supply static:  +0.38 inWC
  TESP:           0.22 + 0.38 = 0.60 inWC

In this example, if the equipment is rated at 0.50" maximum TESP, the system fails.

Connecting Manometer Probes

1. Pair your manometer with measureQuick via Bluetooth (see Bluetooth Pairing Basics).
2. Drill a small test port (3/8") in the return plenum between the filter and the blower, if no port exists.
3. Insert a static pressure tip into the test port. The tip should point into the airstream, perpendicular to airflow.
4. Connect tubing from the static pressure tip to your manometer.
5. Repeat for the supply plenum (after the blower and any indoor coil).

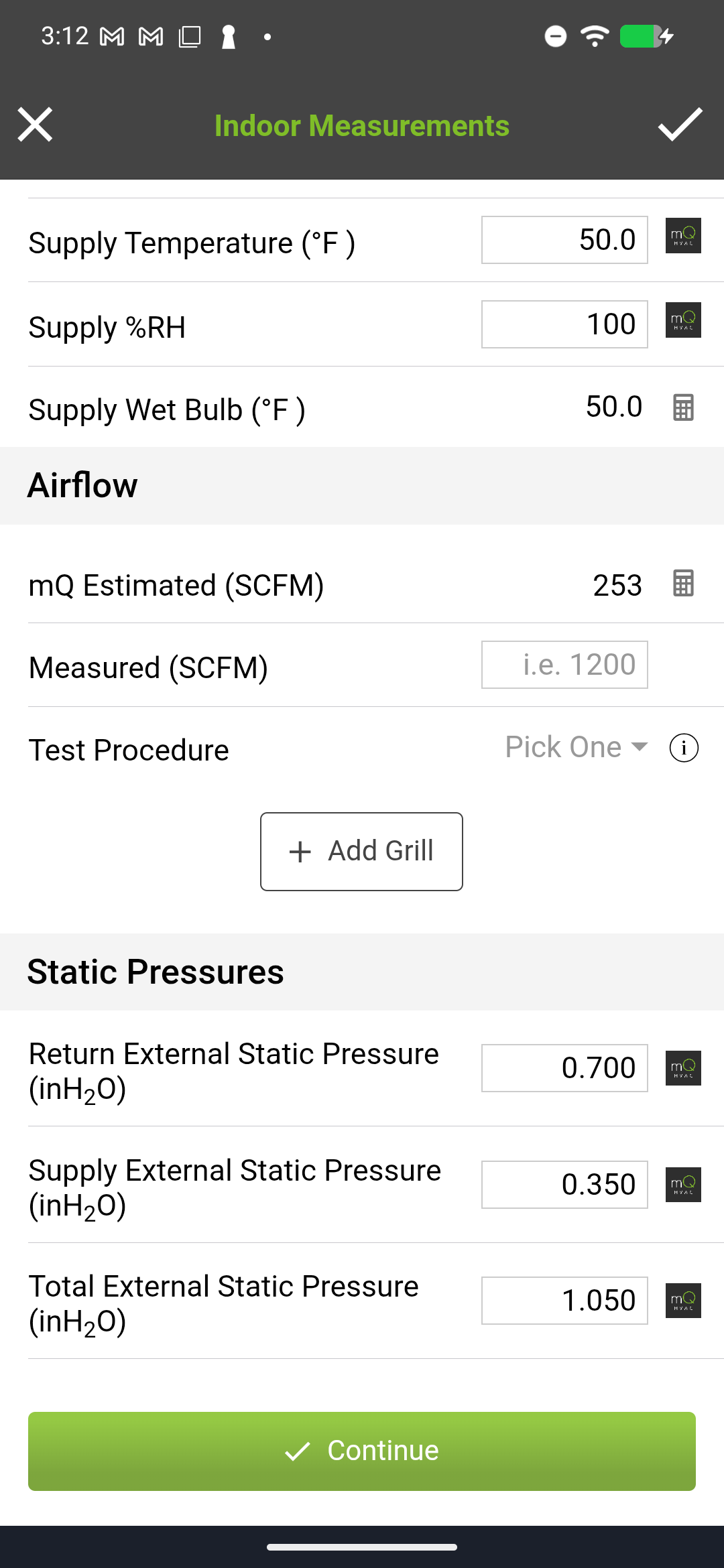

Manometer probes connected to measureQuick, showing return and supply static pressure fields populated with live readings

measureQuick reads the pressure values from your paired manometer in real time. The TESP calculation updates automatically as readings stream in.

Where to Measure: Air Handler vs. Furnace

The measurement locations differ slightly depending on equipment type:

Air handler (cooling only or heat pump):

• Return static: between the filter and the blower
• Supply static: in the supply plenum after the coil

Furnace with A/C coil:

• Return static: between the filter and the blower
• Supply static: in the supply plenum after the A/C coil (above the furnace on upflow, below on downflow)

The key principle is the same: measure the total pressure drop across all internal components that the blower must push air through. For detailed placement guidance, see Manometer Placement: Air Handler or Manometer Placement: Furnace.

Reading TESP Results in measureQuick

After both static pressure readings are captured, measureQuick displays:

• Return static pressure (negative value, in inWC)
• Supply static pressure (positive value, in inWC)
• Total External Static Pressure (calculated sum of absolute values)
• Pass/Fail indicator based on the equipment's rated maximum TESP

measureQuick diagnostics screen showing return static, supply static, calculated TESP, and pass/fail status

If the measured TESP exceeds the equipment's rated maximum, the static pressure subsystem fails. This triggers a diagnostic flag that measureQuick includes in the test record and PDF report.

What the Numbers Tell You

These ranges assume 0.5" rated equipment. For equipment rated higher (0.7", 0.8"), adjust thresholds accordingly. measureQuick uses the actual equipment rating you enter during system profiling.

Common Causes of High Static Pressure

When TESP is over the limit, something in the duct system is creating excess resistance. Here are the most common causes, roughly in order of frequency:

1. Dirty or Restrictive Air Filter

The single most common cause. A clogged filter can add 0.2" to 0.4" of pressure drop by itself. High-MERV filters (MERV 13+) in standard filter racks also create excess restriction, even when new, if the system was not designed for them.

What to check: Pull the filter and measure static pressure without it. If TESP drops significantly, the filter is the primary issue.

2. Undersized Ductwork

Ducts that are too small for the system's airflow requirements create high velocity and high resistance. This is a design problem, not a maintenance problem. Common in older homes where a larger system was installed without upsizing the ducts.

3. Undersized or Restrictive Return

Many residential systems have a single undersized return grille. The return side often contributes more to high TESP than the supply side. If your return static is significantly higher than your supply static (in absolute terms), the return is the likely bottleneck.

4. Dirty Evaporator Coil

A coil coated with dust and debris restricts airflow. This shows up on the supply side of TESP. If supply static is disproportionately high, inspect the coil.

5. Excessive Duct Fittings and Turns

Every elbow, tee, takeoff, and transition adds friction. Systems with many sharp turns and tight transitions accumulate static pressure losses throughout the duct system.

6. Closed or Blocked Registers

Closed supply registers increase backpressure on the supply side. Furniture over return grilles starves the return. Both increase TESP.

7. Collapsed or Kinked Flex Duct

Flex duct that is not fully extended, or that has been kinked during installation, creates localized high resistance. Runs that are too long without support sag and restrict airflow.

What to Do With a High TESP Reading

A failing TESP measurement is not the end of the diagnostic. It is the beginning. TESP tells you there is a problem; the next step is finding where the pressure is being lost.

1. Document the TESP in measureQuick. Save the test. The measurement becomes part of the permanent record for this system.
2. Check the filter. Remove it and remeasure. Quantify how much pressure drop the filter contributes.
3. Compare return vs. supply static. If one side is disproportionately high, that narrows the search.
4. Communicate to the customer. measureQuick's PDF report includes the TESP measurement and pass/fail status. Use this to explain the finding with data, not opinion.
5. Move to the static pressure budget. For a complete diagnostic, break TESP into its components: filter drop, coil drop, supply duct drop, return duct drop. This is covered in TESP Budget & 140% Rule.

Seal Test Ports After Measurement

After taking your readings, seal the test ports you drilled. Use screw-in test port plugs or foil tape rated for duct use. Open test ports create duct leakage and noise.

Some test port covers are designed for repeated access so the next technician does not need to drill new holes. If you are the installing contractor, consider using reusable port plugs as a standard practice.

Video Walkthrough

• YouTube (HVAC School): (23,171 views, 1:05). Jim Bergmann discusses airflow measurement methodology, including why static pressure is the first thing technicians think of when measuring airflow, and the relationship between static pressure, TrueFlow grid measurement, and duct system evaluation

• YouTube: (358,516 views, 11 min). Comprehensive walkthrough of static pressure measurement techniques and pressure mapping across a duct system

• YouTube: (247,916 views, 33 min). Fundamentals of static pressure, how manometers work, and how to interpret readings

• YouTube: (187,771 views, 24 min). TESP-specific measurement procedure and interpretation

• YouTube: (3,389 views, 39 min). Static pressure workflow inside measureQuick, from probe pairing to results

• YouTube: (12,714 views, 4 min). Pairing a Fieldpiece JL3KM2 manometer with measureQuick for static pressure testing

• YouTube: (6,296 views, 7 min). Using static pressure data to identify return duct leakage patterns

Tips & Common Issues

Manometer not zeroed before measurement

Zero your manometer before inserting the static pressure tip into the duct. If the manometer has a non-zero baseline, every reading will be offset. Most wireless manometers have an auto-zero function. Use it with both ports open to atmosphere before connecting tubing. At the San Jacinto College training event (Feb 2026), the Day 2 Mid-Morning session specifically covered auto-zeroing procedures for the RetroTech precision manometer, emphasizing that repositioning a manometer after zeroing can introduce offset errors.

Return static reading is positive (or supply is negative)

Your tubing connections may be reversed, or the static pressure tip is oriented in the wrong direction. Return static should always be negative; supply static should always be positive during normal blower operation. If the signs are flipped, check your probe placement and tubing.

TESP changes significantly when you remove the filter

This is expected and diagnostic. The difference between TESP with the filter and TESP without the filter is the filter pressure drop. If the filter alone accounts for more than 50% of the rated TESP, the filter is too restrictive for this system. See Component Pressure Drops for guidance on evaluating individual filter, coil, and duct pressure contributions.

Both readings are very low (under 0.1" each)

Verify the blower is actually running and at the correct speed setting. Also check that your static pressure tips are fully inserted into the duct and not just in the insulation. A reading of 0.0" on both sides with the blower running usually means a measurement error, not a perfectly designed duct system.

TESP is high but the customer does not want to address it

Document the finding in measureQuick, save the test, and generate the PDF report. This creates a record that the condition was identified and communicated. If the customer later experiences comfort problems or equipment failure, the documentation exists.

Difference between TESP and ESP

Some manufacturers refer to "External Static Pressure" (ESP) rather than "Total External Static Pressure" (TESP). In residential HVAC, these terms are used interchangeably. Both mean the total pressure drop across the air handler as measured at the return and supply plenums. measureQuick uses TESP.
