Static Pressure Measurement

Static Pressure Measurement

What You'll Learn

  • How to connect manometer probes and pair them with measureQuick for static pressure readings
  • How to zero your manometers before measurement and why skipping this step produces bad data
  • How to start or resume a workflow so that static pressure readings auto-populate
  • How measureQuick displays return static, supply static, and calculated TESP on the diagnostic screen
  • How the app evaluates static pressure pass/fail against the equipment's rated maximum TESP
  • How to read and interpret filter pressure drop when measured separately
  • What diagnostic flags the app raises for high return static, high supply static, or both

What You'll Need

  • Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
  • Account: measureQuick account with active subscription (see Creating Your measureQuick Account)
  • Manometer probes: One or two wireless manometers paired with measureQuick via Bluetooth. Compatible instruments include:
    • Fieldpiece JL3KM2 (JobLink Manometer, dual port, 1,000+ ft BLE range, IP55)
    • UEi DPM Wireless Differential Pressure Manometer (+/-80 inWC, 0.01 inWC resolution, dual port, magnetic mount)
    • UEi SPMKIT Wireless Static Pressure Kit (2x manometers + 2x probes + tubing + fittings in one case)
    • CPS SPM-K1 Static Pressure Meter (+/-75 inWC, 0.004 inWC resolution, 500+ hour battery, ~$130)
    • Testo Smart Probes (static pressure capable)
    • Yellow Jacket YJACK MANO 67068 (wireless dual port, ~$233)
  • Static pressure tips and tubing: For connecting probes to test ports in the ductwork
  • Drill with 3/8" bit: If test ports do not already exist (see F4 for placement guidance)
  • Test port plugs or foil tape: To seal ports after measurement
  • Knowledge: Understanding of TESP concepts (see Total External Static Pressure) and where to place probes (see Manometer Placement)
  • Time: 10-15 minutes for the full measurement workflow

Step-by-Step Guide

Step 1: Pair the Manometer with measureQuick

Before taking any measurements, your manometer must be connected to the app via Bluetooth.

  1. Power on your manometer.
  2. Open measureQuick on your phone.
  3. Navigate to the Tools screen (bottom navigation bar).
  4. Tap Add Tool or scan for available Bluetooth devices.
  5. Select your manometer from the list of discovered instruments.
  6. Wait for the connection indicator to show the manometer as connected and streaming data.

If the manometer does not appear, confirm Bluetooth is enabled on both the manometer and your phone. See Bluetooth Pairing Basics for detailed troubleshooting.

measureQuick Tools screen showing a wireless manometer connected and streaming live pressure data

measureQuick Tools screen showing a wireless manometer connected and streaming live pressure data

Tip: Pair the manometer before walking to the equipment. Troubleshooting Bluetooth connections is easier when you are not standing in a crawlspace or attic.


Step 2: Zero the Manometer

Zeroing removes any baseline offset from the pressure reading. This step is required before every measurement session.

  1. Leave both ports on the manometer open to atmosphere. Do not connect tubing yet.
  2. On the manometer, use the auto-zero function. Most wireless manometers have a dedicated zero button or menu option.
  3. Confirm the manometer reads 0.00 inWC (or within 0.01") with no tubing connected.

[Visual Reference] After auto-zeroing, the manometer display reads 0.00 inWC (or 0.000 on higher-resolution models). Both ports are open to atmosphere with no tubing connected. The reading should be stable at zero with no drift. If the display flickers between 0.00 and 0.01, wait for the sensor to thermally settle and zero again. This confirmed-zero state is your baseline before connecting any tubing to the static pressure test ports.

If the reading drifts after zeroing, wait 30 seconds for the sensor to stabilize and zero again. Temperature changes between your truck and the mechanical room can cause transient drift.

Do not skip this step. A manometer that reads +0.03" before you start will add 0.03" to every measurement. On a system near the pass/fail threshold, that offset changes the result.


Step 3: Connect Probes to Test Ports

With the manometer zeroed, connect it to the duct system.

  1. Locate your two test ports: one in the return plenum (between the filter and the blower) and one in the supply plenum (after the blower and any indoor coil). If test ports do not exist, drill them per the guidance in Manometer Placement.
  2. Insert a static pressure tip into each test port. The tip should point into the airstream, perpendicular to the direction of airflow. Angling the tip upstream or downstream skews the reading.
  3. Connect tubing from the static pressure tips to the manometer ports.

Single manometer setup: If you have one dual-port manometer, connect the return probe to the negative (low) port and the supply probe to the positive (high) port. The manometer reads the differential directly as TESP.

Two single-port manometers: Connect one to the return test port and the other to the supply test port. measureQuick reads both instruments simultaneously and calculates TESP from the two individual readings.

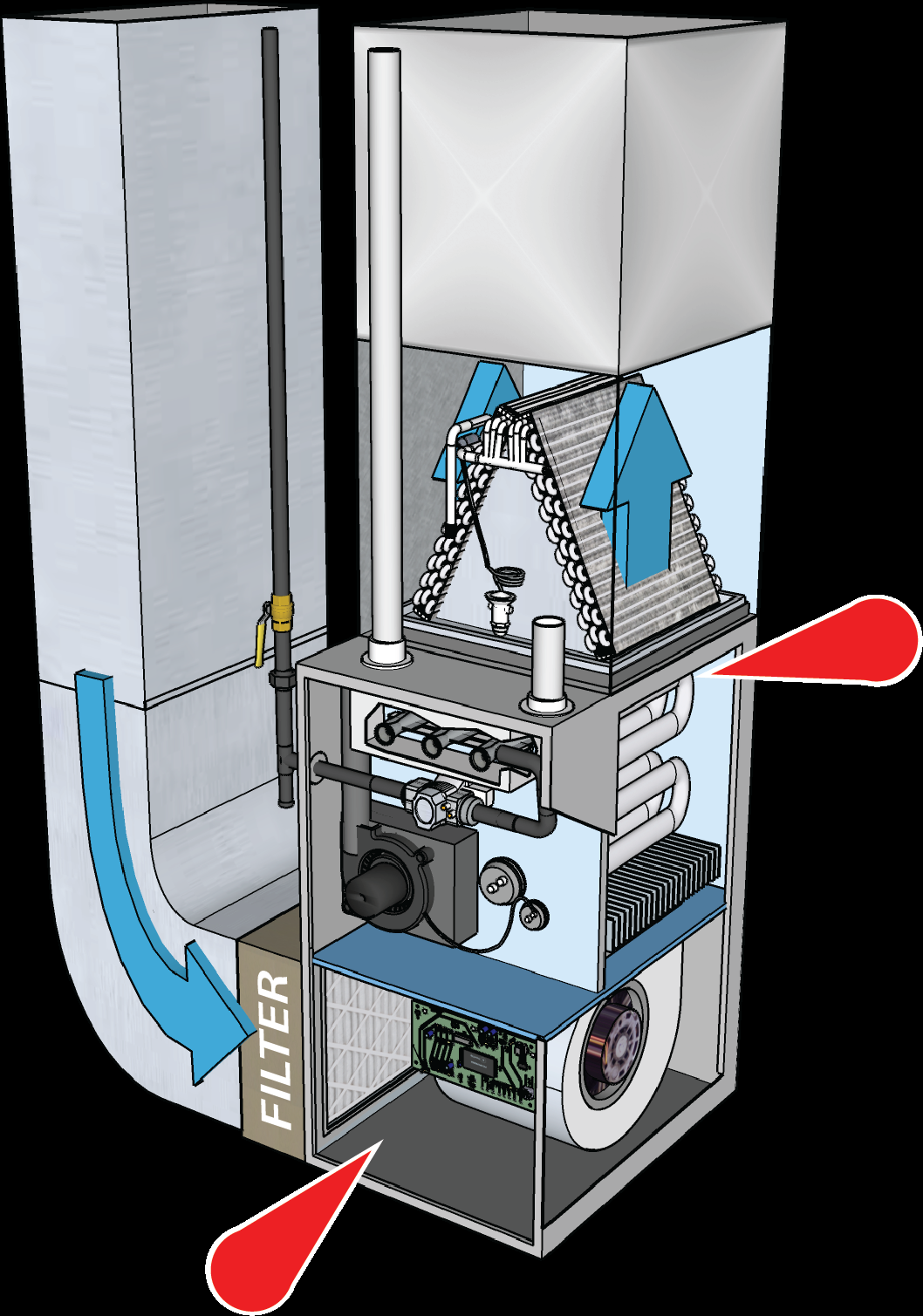

Upflow furnace cutaway diagram showing return and supply static pressure measurement point locations

Upflow furnace cutaway diagram showing return and supply static pressure measurement point locations

Tip: Keep tubing runs as short as practical. Long tubing runs do not affect the final pressure reading, but they increase the time for readings to stabilize after changes in blower operation.


Step 4: Confirm the Blower Is Running

Static pressure readings are meaningless without airflow. Before recording measurements:

  1. Set the thermostat to call for cooling (or heating, depending on the mode you are testing).
  2. Confirm the blower is running at the speed it will operate during normal use. Do not measure at a reduced fan speed unless that is the condition you intend to evaluate.
  3. Verify airflow by checking for air movement at a supply register.

If you are measuring for cooling mode, the compressor should also be running. The evaporator coil adds pressure drop when wet, and a coil that has been running in cooling mode presents a different restriction than a dry coil.


Step 5: Start or Resume the Workflow in measureQuick

Static pressure readings auto-populate into the test when a workflow is active and manometers are streaming data.

  1. In measureQuick, open the project for this job (or create a new one).
  2. Start a new test or resume an existing test.
  3. Navigate to the diagnostics screen within the active workflow.
  4. Confirm that the return static pressure and supply static pressure fields are receiving live data from your paired manometer.

measureQuick workflow diagnostics screen showing live return and supply static pressure values streaming from the connected manometer

measureQuick workflow diagnostics screen showing live return and supply static pressure values streaming from the connected manometer

The readings will fluctuate slightly as the manometer captures real-time pressure variations. Wait for the values to stabilize (typically 5-10 seconds of consistent readings) before saving.


Step 6: Read the Results

Once readings stabilize, measureQuick displays three values on the diagnostics screen:

Field Expected Sign Description
Return Static Pressure Negative Pressure in the return plenum, between filter and blower. Typical range: -0.1" to -0.6" inWC.
Supply Static Pressure Positive Pressure in the supply plenum, after blower and coil. Typical range: +0.1" to +0.6" inWC.
Total External Static Pressure (TESP) Positive Sum of absolute values: |return| + |supply|. Calculated automatically by the app.

measureQuick diagnostics screen showing return static, supply static, and calculated TESP with values populated

measureQuick diagnostics screen showing return static, supply static, and calculated TESP with values populated

Example reading:

Return static:  -0.28 inWC
Supply static:  +0.41 inWC
TESP:            0.28 + 0.41 = 0.69 inWC

In this example, a system rated for 0.50" maximum TESP fails. The supply side is contributing more resistance than the return side.


Step 7: Review the Pass/Fail Indicator

measureQuick evaluates the calculated TESP against the equipment's rated maximum. This rating comes from the system profile you created (or the AI System Profiler populated) when setting up the project.

  • Pass: Measured TESP is at or below the equipment's rated maximum TESP.
  • Fail: Measured TESP exceeds the rated maximum.

The 140% rule: External static pressure should not exceed 140% of the equipment's rated static pressure. Beyond that threshold, PSC blower motor performance degrades significantly. ECM and X13 (constant airflow / constant torque) motors compensate by drawing higher wattage, which leads to premature motor failure. For a system rated at 0.5", the 140% boundary is 0.7".

The pass/fail result appears on the diagnostics screen next to the TESP value. It is also recorded in the test record as pf_static_pressure_result (Pass, Fail, or NULL if not measured).

measureQuick showing a static pressure FAIL result with the measured TESP highlighted alongside the equipment's rated maximum

measureQuick showing a static pressure FAIL result with the measured TESP highlighted alongside the equipment's rated maximum

If the system profile does not include a rated maximum TESP, measureQuick defaults to 0.5" inWC for standard residential equipment. To override this, edit the system profile and enter the correct rated value from the equipment's installation documentation.

Tip: Check the equipment data plate or installation manual for the rated maximum static pressure. Not all equipment is rated at 0.5". High-static air handlers and communicating systems may be rated at 0.7" or 0.8". Using the wrong rating produces a false pass or false fail.


Step 8: Filter Pressure Drop (Optional)

If you want to isolate how much pressure the air filter contributes, measureQuick supports a separate filter pressure drop measurement.

  1. With the blower running, record your initial TESP (filter installed).
  2. Remove the air filter.
  3. Let the manometer readings stabilize (5-10 seconds).
  4. Record the TESP without the filter.

The difference between the two measurements is the filter pressure drop.

Example:
  TESP with filter:     0.69 inWC
  TESP without filter:  0.42 inWC
  Filter pressure drop: 0.27 inWC

A filter that accounts for more than 50% of the rated TESP is too restrictive for the system, either because it is dirty, because it has too high a MERV rating for the filter grille size, or both.


Step 9: Save the Test

After reviewing your readings and the pass/fail status:

  1. Tap Save in the active workflow to record the static pressure measurements.
  2. The return static, supply static, TESP, and pass/fail result are stored in the test record.
  3. These values appear on the PDF report generated for the customer.

The saved data is permanent. If you take static pressure readings on a return visit, save them as a new test so you have a comparison over time.


Step 10: Seal Test Ports

After saving, disconnect your tubing and seal the test ports.

  1. Remove the static pressure tips from the duct.
  2. Insert screw-in test port plugs, or cover each hole with foil tape rated for duct use.
  3. Confirm the seal is airtight. Open test ports create duct leakage and generate noise during blower operation.

If you use reusable port plugs, the next technician can access the same measurement points without drilling new holes.


Interpreting the Results

What High Return Static Tells You

A return static pressure that is disproportionately high (in absolute value) compared to supply static suggests problems on the return side:

  • Dirty or clogged air filter. The most common cause. Remove the filter and remeasure to confirm.
  • Undersized return duct or grille. A single undersized return is the most frequent design deficiency in residential systems.
  • Blocked return grille. Furniture, rugs, or storage placed over or against the return grille.

What High Supply Static Tells You

A supply static pressure that is disproportionately high compared to return static suggests problems on the supply side:

  • Restrictive ductwork. Undersized supply runs, excessive fittings, or long flex duct runs without adequate support.
  • Dirty evaporator coil. Dust and debris on the coil surface restrict airflow. This is especially common on systems that have run without a filter or with a low-MERV filter.
  • Closed supply registers. Multiple closed registers increase backpressure on the supply plenum.

Air Handler vs. Furnace TESP Differences

The rated TESP and probe placement differ between air handlers and furnaces. On an air handler, the evaporator coil is internal to the unit, so the TESP measurement captures only the external duct system. Air handlers are typically rated at 0.3" to 0.5" wc. On a furnace, the filter and evaporator coil are external to the furnace cabinet. Probes must be placed in the cabinet return (post-filter) and below the evaporator coil (pre-coil), so the measurement captures more components. Furnaces are typically rated at 0.5" wc. If you swap probe placement conventions between the two configurations, your TESP reading will not match the equipment's rated maximum correctly.

What Both High Tells You

When both return and supply static are elevated, the duct system as a whole is undersized or the equipment is oversized for the ductwork. This is typically a design problem, not a maintenance problem. Common scenarios:

  • A larger tonnage system was installed without upsizing the ductwork.
  • The original duct design was marginal and accumulated restrictions over time (dirty coil, higher-MERV filter, added registers).
  • The duct system serves an addition or remodel that increased the load without expanding the ductwork.

Video Walkthrough

  • YouTube: (39 min, 3.4K views). Full static pressure workflow inside measureQuick, from pairing probes through reading results

  • YouTube: (3:54, 12.7K views, 103 likes). Pairing a Fieldpiece JL3KM2 manometer with measureQuick and taking static pressure readings

  • YouTube: (1:00, 3.5K views, 57 likes). Quick demonstration of the double-zero technique

  • YouTube: (0:34, 5.7K views, 95 likes). Common mistake: moving the manometer after zeroing introduces offset error

  • YouTube: (8:29, 5.3K views, 114 likes). Detailed walkthrough of zeroing procedures

  • YouTube: (188K views, 24 min). TESP measurement procedure and result interpretation

  • YouTube: (7:04, 6.3K views, 290 likes). Using static pressure data patterns to identify return duct leakage


Tips & Common Issues

Do not reposition the manometer after zeroing

Once you zero the manometer, leave it in the same physical position and orientation. Moving it from flat on a surface to hanging on sheet metal (or vice versa) changes the sensor's reference baseline and introduces offset. Zero the manometer in the position where it will remain during measurement. The measureQuick YouTube short "Stop repositioning your manometer after zeroing" demonstrates this common mistake.

Manometer not zeroed before measurement

The most common source of inaccurate readings. If your TESP seems off by a few hundredths of an inch, disconnect the tubing and check the zero. Re-zero and remeasure. This takes 30 seconds and eliminates the most frequent measurement error.

Return static reads positive (or supply reads negative)

The tubing connections are likely reversed, or the static pressure tip is oriented wrong. Return static is always negative during normal blower operation; supply static is always positive. Swap the tubing connections or reposition the pressure tips. If using a dual-port manometer, confirm the return probe is on the negative port and the supply probe is on the positive port.

Readings fluctuate and will not stabilize

Wait at least 5-10 seconds. If readings continue to fluctuate, check for:

  • Doors opening and closing near the return grille
  • Wind effects on the building envelope (exterior walls with leakage near the return)
  • Blower speed cycling (variable-speed systems may ramp up and down)
  • Loose tubing connections or cracked tubing

Close interior doors near the return to reduce pressure disturbance. If the system has a variable-speed blower, wait for it to reach a steady operating speed before recording.

TESP reads 0.00 on both sides with the blower running

This almost always indicates a measurement error, not a perfectly designed duct system. Check that:

  • Your static pressure tips are fully inserted through the duct wall, not sitting in the insulation
  • Tubing is connected to the manometer (not just to the pressure tips)
  • The manometer is paired and streaming data to measureQuick (check the Tools screen)

Static pressure values do not appear in the workflow

Confirm that:

  1. The manometer is paired and connected (check the Tools screen for a live data indicator).
  2. You have an active test workflow open (not just the project screen).
  3. The manometer is assigned to the correct measurement channel in the workflow. Some manometers support multiple channels; verify the channel mapping.

Equipment rated TESP is not 0.5"

measureQuick defaults to 0.5" when no rating is entered. If your equipment is rated for 0.7" or 0.8", update the system profile with the correct value. The pass/fail evaluation uses whatever value is in the profile. A wrong rating produces a wrong result.

Filter pressure drop seems too high

If the filter accounts for more than half the rated TESP, the filter is too restrictive for this system. Common causes: dirty filter that needs replacement, high-MERV filter in a standard 1" filter rack, or an undersized filter grille that forces all airflow through a small filter area. See Component Pressure Drops for guidance on diagnosing individual component contributions including filter sizing.

Static pressure is not the same as airflow

Jim Bergmann notes that "most technicians think of static pressure when they think of measuring airflow, which is interesting because that's not" a direct airflow measurement. Static pressure tells you about restriction, not volume. A system can have acceptable TESP and still have inadequate airflow if the blower is undersized or running at the wrong speed. For actual airflow measurement, see TrueFlow Grid Setup or TrueFlow Airflow Measurement.

Customer asks what "good" static pressure is

There is no universal target. The standard is that TESP should not exceed the equipment's rated maximum (typically 0.5" for standard residential equipment). Lower is generally better, but extremely low readings (under 0.1" total) on a system with ductwork may indicate a measurement error or disconnected ductwork. The equipment rating is the benchmark measureQuick evaluates against.
