What You'll Learn

• How to run a quick static pressure screening in measureQuick without a full diagnostic workflow
• When to use the Static Pressure Screening quick test: maintenance visits, rapid assessments, pre-diagnostic triage
• How measureQuick calculates Total External Static Pressure (TESP) from return and supply readings
• How to interpret pass/fail results against the equipment's rated maximum
• How to apply the 140% rule for quick triage decisions
• What the V12 data shows: 70%+ of tested systems exceed 0.5" TESP

What You'll Need

• Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
• Account: measureQuick account (Quick Tests are free with PDF reports)
• Manometer: Bluetooth-compatible manometer paired with measureQuick, such as:
  • Fieldpiece JL3KM2 (JobLink Manometer)
  • UEi DPM Wireless Manometer or SPMKIT Static Pressure Kit
  • CPS Static Pressure Meter
  • Yellow Jacket YJACK MANO
• Static pressure tips and tubing for test port access
• Time: Under 5 minutes from probe insertion to results

When to Use the Static Pressure Screening

The Static Pressure Screening quick test is designed for situations where you need a fast answer about airflow restrictions without running a full commissioning or diagnostic workflow. Common scenarios:

• Maintenance visits. You are on a routine maintenance call and want to check the duct system's condition before cleaning the coil or changing the filter.
• Rapid system assessment. A customer reports comfort complaints. Before connecting refrigerant gauges or running a full diagnostic, a static pressure screening tells you whether the air side is the problem.
• Pre-diagnostic triage. You suspect duct issues but want to confirm before committing time to a full four-point static pressure map.
• Quick check after filter replacement. Verify that the new filter is not more restrictive than what the system can handle.

This quick test measures only Total External Static Pressure. It does not capture refrigerant data, electrical data, or run a full system commissioning. For a complete system evaluation, use the A/C Service Workflow (G2) or the appropriate guided workflow for the equipment type.

Step-by-Step Guide

Step 1: Open the Quick Test

From the measureQuick home screen, open a project or start a new one. Navigate to the Quick Tests menu. Select Static Pressure Screening.

measureQuick will present the static pressure screening interface, which requires two measurements: return static pressure and supply static pressure.

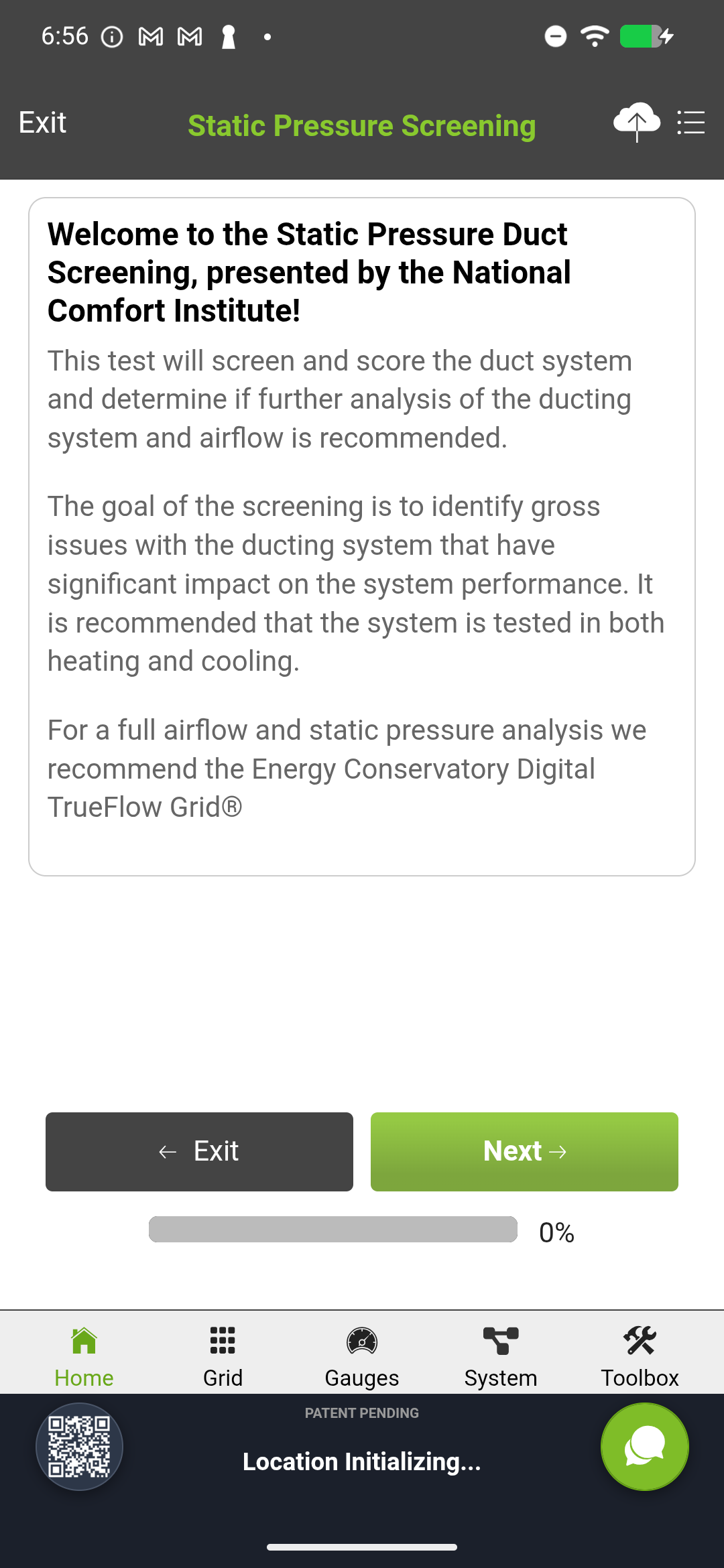

measureQuick Quick Tests menu showing Static Pressure Screening option highlighted

Step 2: Connect and Zero Your Manometer

Pair your Bluetooth manometer with measureQuick if it is not already connected (see Bluetooth Pairing Basics for setup instructions).

Before inserting the static pressure tip into any duct, zero the manometer. With both ports open to atmosphere, use the auto-zero function on your manometer. This eliminates baseline offset that would skew your readings.

Do not reposition the manometer after zeroing. Moving a manometer changes the hydrostatic pressure on the sensor and introduces offset error. Zero it in the position where it will stay during the test.

[Visual Reference] The measureQuick live data display shows the connected manometer reading 0.000 inWC after zeroing. The manometer appears in the connected instruments list with a Bluetooth connection indicator showing it is paired and streaming data. The live pressure value updates in real time. This confirmed-zero baseline is essential before inserting the static pressure tip into any duct - any offset present at this stage carries through to every subsequent reading.

Tips:

• If your manometer does not have an auto-zero function, note the baseline reading and account for it mentally
• Keep the manometer on a flat, stable surface during the test

Step 3: Take the Return Static Pressure Reading

Drill or access a test port in the return plenum between the filter and the blower. Insert a static pressure tip into the duct, perpendicular to airflow. Connect tubing from the tip to your manometer.

With the blower running, the return static reading should be negative (typically -0.1" to -0.6" or lower). measureQuick displays this value in real time as it streams from your Bluetooth manometer.

Wait a few seconds for the reading to stabilize, then capture the measurement in measureQuick.

Step 4: Take the Supply Static Pressure Reading

Move to the supply plenum. Access or drill a test port after the blower and any indoor coil. Insert the static pressure tip and connect tubing.

The supply static reading should be positive (typically +0.1" to +0.6" or higher). Again, wait for stabilization and capture the reading.

Both return and supply static pressure values populated, with TESP calculated automatically

Step 5: Read the Results

measureQuick automatically calculates TESP:

TESP = |Return Static| + |Supply Static|

The app compares the calculated TESP to the equipment's rated maximum (entered during system profiling, or defaulting to 0.5" for standard residential equipment). The result displays as:

• Pass (green): TESP is at or below the rated maximum
• Fail (red): TESP exceeds the rated maximum

If you have not profiled the equipment, measureQuick uses the industry-standard 0.5" as the default threshold. For high-static equipment rated at 0.7" or 0.8", profile the system first so the pass/fail evaluation uses the correct limit.

Step 6: Apply the 140% Rule for Triage

The 140% rule provides a quick triage threshold: if measured TESP exceeds 140% of the equipment's rated maximum, the restriction is severe enough to warrant immediate investigation and likely duct modification.

For a system rated at 0.5", that threshold is 0.70 inWC. For a system rated at 0.7", it is 0.98 inWC.

A TESP between the rated maximum and 140% means the system is over-limit but may respond to simpler fixes (filter change, register adjustments). Above 140%, the duct system itself likely needs modification.

For full details on the 140% rule and static pressure budgeting, see TESP Budget & 140% Rule.

What the Data Shows

measureQuick's V12 database of 115,706 quality-filtered cooling tests confirms that more than 70% of systems exceed 0.5" TESP. This is the single most common diagnostic finding in the field.

Running a static pressure screening takes under five minutes and catches the most prevalent issue technicians encounter. If you are on a maintenance visit and skip static pressure, you are statistically likely to miss an existing problem.

Video Walkthrough

• YouTube (measureQuick): (3,389 views, 39 min). Complete static pressure workflow inside measureQuick, from probe pairing to results

• YouTube (HVAC School): (23,171 views, 1:05). Jim Bergmann on airflow measurement methodology and why static pressure is the first thing technicians think of when assessing airflow

• YouTube (measureQuick): (5,655 views, 0:34). Quick tip on avoiding offset errors after zeroing your manometer

Tips & Common Issues

My TESP seems too low - both readings are near zero

Verify the blower is running at the correct speed. Check that your static pressure tips are fully inserted into the duct airstream, not sitting in insulation or drywall. A reading of 0.0" on both sides with the blower running almost always means a measurement error.

My return reading is positive (or supply is negative)

Your tubing connections are likely reversed, or the static pressure tip is oriented incorrectly. Return static should be negative; supply should be positive during normal blower operation. Check your connections and tip orientation.

The system failed but the customer does not want to address it

Document the finding. Save the test and generate the free PDF report. This creates a record that the condition was identified and communicated. The report is evidence if the customer later experiences comfort problems or premature equipment failure.

When should I move from a quick screening to a full diagnostic?

If the screening shows a pass, you may not need further investigation of the air side on that visit. If it fails, the next step depends on severity. Near the limit, a filter change may resolve it. Well over the limit (especially above 140%), a full four-point static pressure map and duct evaluation are warranted. The quick test tells you whether to dig deeper.

Difference between this quick test and static pressure in a full workflow

The quick test measures TESP only. A full workflow (such as the A/C Service Workflow in G2) includes static pressure alongside refrigerant measurements, electrical data, airflow, and system vitals. The quick test is faster but narrower.
