What You'll Learn

• How to connect compatible electrical meters to measureQuick via Bluetooth
• What electrical measurements measureQuick captures: voltage, amperage, watts, and power factor
• When electrical data is required (installations) versus optional but valuable (service calls)
• How measureQuick uses electrical data internally for EER, locked rotor detection, and brown-out detection
• How to measure voltage, amperage, watts, and power factor on HVAC equipment
• Power factor ranges for PSC versus ECM motors and why this matters

What You'll Need

• Device: iPhone (iOS 15+), iPad, or Android phone/tablet (Android 10+) with measureQuick v3.5+
• Account: Active measureQuick account
• Electrical meter: A measureQuick-compatible Bluetooth clamp meter or multimeter (see Step 2 for the full list)
• Prerequisite knowledge: Bluetooth pairing fundamentals (see Bluetooth Pairing Basics)
• Safety equipment: Voltage-rated gloves, safety glasses, and a non-contact voltage tester
• Time: 15-20 minutes to read thoroughly; 5 minutes for initial meter pairing

Step 1: Why Electrical Measurements Matter

Electrical measurements are one of the most underutilized capabilities in measureQuick. Temperature and pressure diagnostics get the most attention in training, but electrical data fills gaps that refrigerant analysis alone cannot address.

Here is what electrical data enables:

Efficiency calculations require watts. Energy Efficiency Ratio (EER) is delivered BTU/h divided by watts consumed. Without a connected electrical meter streaming wattage, measureQuick cannot calculate real-time EER. The EER field stays blank in your test record. This means you have system capacity but no efficiency number - half the picture.

Locked rotor detection requires amps. A compressor drawing far above its Rated Load Amps (RLA) may be in a locked rotor condition - mechanically seized or struggling against liquid slugging. measureQuick compares measured amps to the nameplate RLA and flags abnormal draw. Without live amperage data, this detection does not run.

Brown-out detection requires voltage. Low supply voltage causes motors to draw higher current to compensate, increasing heat and shortening compressor life. measureQuick monitors voltage and flags brown-out conditions. A system running at 198V on a 230V circuit is under stress that temperature readings alone will never reveal.

Capacitor and motor diagnostics require electrical context. A failing run capacitor degrades power factor and increases amperage before the compressor actually fails. Electrical trending catches this degradation early. By the time temperature and pressure symptoms appear, the compressor may already be damaged.

Vital Score completeness. For installation workflows, electrical data is required for a complete Vital Score. The score calculation includes an electrical efficiency component. Without electrical measurements, the score still generates but loses that dimension - and the report shows it.

The bottom line: temperature and pressure tell you what the refrigerant is doing. Electrical data tells you what the equipment is doing. A complete diagnosis needs both.

Diagnostic screen showing voltage, amperage, watts, and power factor fields populated from a connected clamp meter, with EER calculated

Step 2: Compatible Meters

measureQuick supports seven electrical meters from five manufacturers. All connect via Bluetooth Low Energy (BLE).

Important: The Yellow Jacket YJACK AMP connects via Bluetooth but does not send amperage data to the app. If you need wireless amp data in measureQuick, choose a different meter from this list.

Choosing between meters: For most HVAC technicians adding electrical capability to measureQuick for the first time, the Redfish iDVM550 at ~$130 offers the best value. It streams all four key readings (V/A/W/PF) simultaneously. If you need CAT IV rating for service panel work, capacitor testing, or motor winding resistance, the Fieldpiece SC480/SC680 or UEi DL599 cover those additional needs at a higher price point.

measureQuick Toolbox showing a connected iDVM550 and a connected Fieldpiece SC480, both with green status indicators

Step 3: Connecting Your Meter

The Bluetooth pairing process for electrical meters follows the same pattern as other measureQuick smart tools. If you have paired temperature clamps or a manifold before, this will be familiar.

1. Power on the meter. Most BLE meters begin broadcasting their Bluetooth signal automatically when turned on. Check for a Bluetooth icon on the meter's display to confirm.

2. Open the measureQuick Toolbox. Tap Tools from the home screen or bottom navigation, then tap Add or Scan to search for nearby Bluetooth devices.

3. Select your meter from the list. It appears by its model name (e.g., "iDVM550", "DL599", "SC480"). Tap to pair.

4. Confirm the connection. The meter appears in your connected tools list with a green status indicator. Live readings should update on screen immediately.

measureQuick automatically maps electrical meters to the appropriate measurement channels. You do not need to manually assign voltage, amperage, or watts - the app detects what the meter is sending and routes data accordingly.

Tips:

• Keep your phone or tablet within 30-50 feet of the meter. BLE 4.0 meters (like the iDVM550) have shorter range than BLE 5.0 devices. Metal equipment cabinets and conduit reduce signal.
• If the meter does not appear in the scan list, power-cycle it and try again. Make sure the meter is not already connected to another device (phone, tablet, or the meter's own companion app).
• Some meters (Fieldpiece SC series) require selecting a specific measurement mode on the dial before the correct data type streams to mQ.

Step 4: Measuring Voltage

Voltage measurement tells you what the equipment is actually receiving at the point of connection, which may differ from what the utility delivers at the meter.

Where to measure:

• At the disconnect - the most common measurement point. Measure line-to-line voltage (L1 to L2 for single-phase, or across phases for three-phase) with the disconnect closed and the system running.
• At the contactor - measures voltage at the point where it feeds the compressor. Voltage drop between the disconnect and contactor indicates wiring or connection issues.
• At the thermostat - 24VAC control voltage. Low control voltage can cause erratic operation.

What to look for:

• Nominal residential: 240V single-phase (+/- 10%). Acceptable range is 216-264V.
• Nominal light commercial: 208V or 480V three-phase. Check the nameplate.
• Voltage below 90% of nameplate indicates a brown-out condition. measureQuick flags this. Compressors running at low voltage draw higher current, overheat, and fail prematurely.
• Voltage above 110% of nameplate is an overvoltage condition that can damage control boards and motors.
• Voltage imbalance on three-phase systems should not exceed 2%. Greater imbalance causes motor overheating.

measureQuick displays voltage in real time and factors it into the electrical subsystem pass/fail assessment.

Diagnostic screen showing voltage reading of 243V with green checkmark indicating within normal range

Step 5: Measuring Amperage (Current)

Amperage tells you how hard the motor is working. It is the primary indicator for compressor health, fan motor condition, and circuit loading.

Clamp meter vs. direct connection:

A clamp meter (iDVM550, DL599, HAC, VOLT-100) measures current by clamping around a single conductor. You do not break the circuit. This is the standard field method.

A multimeter with current input (Fieldpiece SC480/SC680) can measure current directly through the meter, but this requires inserting the meter in series - rarely practical for HVAC field work. Use the clamp function when available.

Where to clamp:

• Compressor common wire - measures total compressor current draw. Compare to the nameplate RLA (Rated Load Amps). Normal operating amps are typically 50-80% of RLA depending on load conditions.
• Condenser fan motor - typically 1-3 amps for residential PSC/ECM fan motors. Higher draw indicates bearing wear or a failing capacitor.
• Indoor blower motor - measured at the air handler. ECM blowers vary speed by adjusting current draw.

Critical rule: clamp around a single conductor. If you clamp around a two-conductor cable (hot and neutral bundled together), the opposing magnetic fields cancel and the meter reads zero or near-zero. Separate the individual wires at the disconnect or contactor terminal and clamp around just one.

What the readings mean:

• Amps significantly above RLA - possible locked rotor, failing compressor, or liquid slugging. measureQuick flags this condition.
• Amps well below expected - possible lost charge (compressor unloaded), failed valve, or single-phase condition on a three-phase system.
• Amps fluctuating rapidly - possible intermittent electrical contact, failing capacitor, or erratic load.

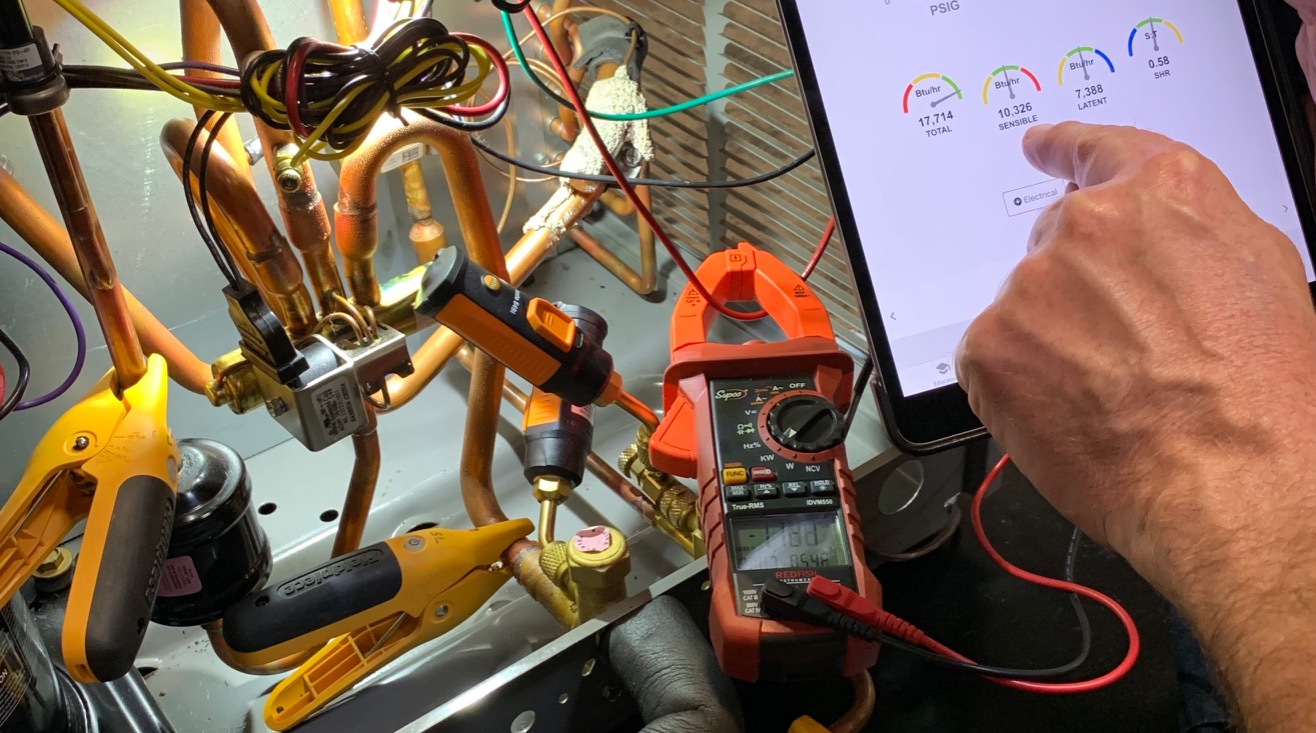

Clamp meter clamped around the compressor common wire at the contactor, with measureQuick showing live amp readings

Step 6: Measuring Watts and Power Factor

Watts and power factor are where electrical data delivers diagnostic value beyond what a basic amp reading provides. Most clamp meters on the compatible list stream watts and power factor alongside voltage and amps.

Watts are the real power consumed by the equipment. The formula is Volts x Amps x Power Factor. measureQuick uses watts as the denominator in EER calculations:

EER = Delivered BTU/h / Watts

Without watts, no EER. Without EER, you have capacity data but no efficiency data.

Power factor is the ratio of real power (watts) to apparent power (volt-amps). It tells you how effectively the motor converts electrical energy into mechanical work.

Typical power factor ranges for HVAC motors:

Why power factor matters diagnostically:

• A PSC compressor at PF 0.65 likely has a failing run capacitor. The capacitor corrects power factor; when it degrades, PF drops. This is an early warning - the compressor still runs but is under electrical stress. Catching a failing capacitor before the compressor seizes saves the customer a compressor replacement.
• An ECM blower at PF 0.90 would be unusual and may indicate the ECM controller has failed and the motor is running in backup PSC mode.
• Power factor near 1.0 on a resistive load is expected (electric heat strips). If a motor shows PF near 1.0, something is wrong - motors are inductive loads and should not reach unity PF without capacitive correction.

measureQuick flags abnormal power factor values as part of the electrical subsystem pass/fail assessment. The flag triggers when PF falls outside expected ranges for the motor type.

Electrical measurement panel showing watts (2,847W), power factor (0.92), voltage (241V), and amperage (12.4A) with EER calculated at 10.8

Step 7: Where measureQuick Uses Electrical Data

Understanding how the app uses electrical readings helps you appreciate why capturing them matters. Here is what runs under the hood:

EER calculation. Watts feed directly into Energy Efficiency Ratio. The app takes the delivered cooling capacity (from temperature and airflow measurements) and divides by watts consumed. This produces a real-time efficiency number you can compare to the equipment's rated EER.

Locked rotor detection. The app compares measured amps to the compressor's nameplate RLA. If measured amps exceed a threshold (typically 1.5x RLA), it flags a potential locked rotor condition. This is a critical safety alert - a locked rotor compressor can trip the breaker, damage windings, or cause the thermal overload to cycle repeatedly.

Brown-out detection. The app monitors supply voltage against the equipment's nameplate voltage. A reading below approximately 90% of nameplate triggers a brown-out flag. Brown-out conditions are common in summer when grid demand peaks, and they are invisible without voltage monitoring.

Electrical subsystem pass/fail. The report includes an electrical subsystem assessment. Voltage out of range, abnormal amperage, or unusual power factor each contribute to the electrical pass/fail determination. This appears in the diagnostic report and the Vital Score breakdown.

Vital Score electrical component. The Vital Score includes an "Electrical Efficiency" loss category. Without electrical data, this category cannot be scored, and the score reflects the gap. For installation workflows, this is particularly visible because the installation process is expected to verify electrical performance.

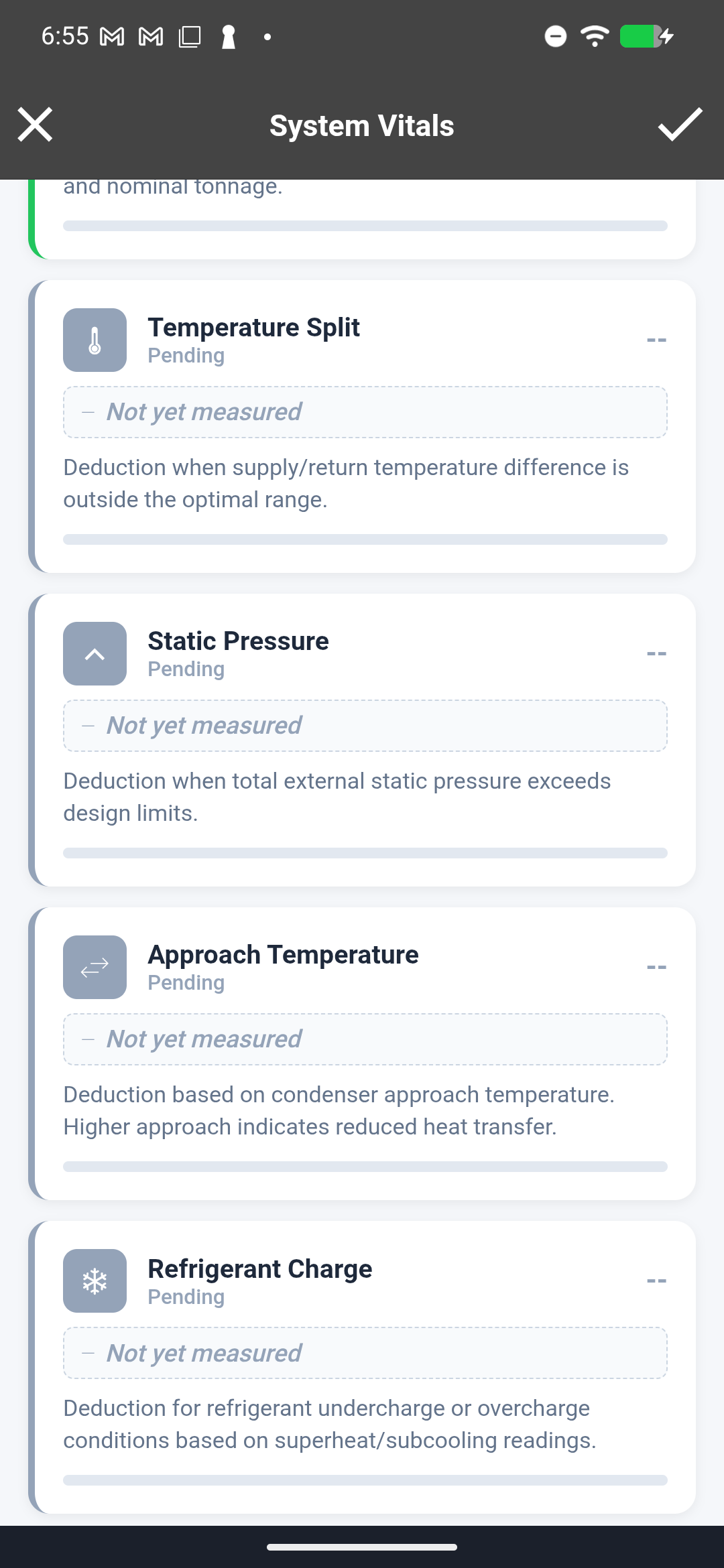

Vital Score breakdown page showing score factors and loss categories

Step 8: Required for Installations vs. Optional for Service

This distinction trips up many technicians. The short version:

Installation workflows require electrical measurements for a complete Vital Score. When commissioning a new installation, the guided workflow expects voltage, amperage, and watts to calculate EER and complete the electrical subsystem assessment. You can save the test without electrical data, but the Vital Score and report will show the gap.

Service workflows can produce a Vital Score without electrical data, but electrical measurements improve accuracy. A service call focused on refrigerant charge and airflow does not strictly need electrical data. The Vital Score generates from the measurements you provide. However, adding electrical data catches issues that temperature and pressure miss - a failing capacitor, a voltage problem, or an overloaded circuit that may be contributing to the symptoms you are investigating.

The practical recommendation: Always connect an electrical meter for installations. For service calls, connect one whenever practical - it takes under a minute to clamp a meter on the common wire at the outdoor unit, and the additional diagnostic data is worth the effort. The situations where electrical data changes the diagnosis (failing capacitor, voltage problem, locked rotor) are exactly the situations where catching it early prevents a callback or a compressor failure.

Safety Considerations

Electrical measurements on HVAC equipment involve live circuits at 120-600V. These practices are non-negotiable.

• Verify your meter's CAT rating matches the circuit. CAT III covers distribution-level circuits (branch panels, equipment disconnects). CAT IV covers utility-level entry (service entrance, meter base). For service panel and disconnect work, use a CAT IV-rated meter.
• Inspect test leads before every use. Look for cracked insulation, exposed conductors, and damaged probe tips. Replace leads that show any damage.
• Clamp around a single conductor. Clamping around a multi-conductor cable (hot + neutral together) produces a near-zero reading because the magnetic fields cancel.
• Never exceed the meter's rated voltage range. Confirm the meter can handle the voltage before connecting.
• Wear voltage-rated gloves and safety glasses for any live electrical work.
• De-energize for resistance and capacitance measurements. Capacitor testing and winding resistance checks require a de-energized circuit. Verify de-energized state with a non-contact voltage tester before touching conductors.
• Discharge capacitors before testing. A charged run capacitor stores enough energy to cause injury. Use a discharge resistor or the meter's discharge function before handling.

Video Walkthrough

• YouTube: (8,577 views, 7:28) - Full walkthrough of Bluetooth pairing, clamping technique, and live data streaming

• YouTube: - Covers probe integration including electrical measurement alongside pressure and temperature probes

• YouTube: (66,533 views, 72 min) - Full platform overview including electrical data in diagnostics

Tips & Common Issues

My clamp meter is connected but amps show zero

You are probably clamped around a multi-conductor cable instead of a single wire. Hot and neutral running together produce canceling magnetic fields. Separate the conductors at the disconnect or contactor and clamp around just one wire.

Also verify the system is actually running. If the compressor contactor is open (system off, thermostat not calling), there is no current to measure.

Power factor reads 0.00 or is missing

Power factor requires both voltage and current simultaneously. If the compressor is not running, there is no current flow and PF cannot be calculated. Start the system, wait for the compressor to engage, and allow 30-60 seconds for readings to stabilize before evaluating PF.

On some meters, PF only displays when the meter is in the correct mode (AC power or watts mode, not standalone amps mode). Check your meter's mode selection.

The meter does not appear in the Bluetooth scan

1. Power-cycle the meter (off, wait 5 seconds, on).
2. Confirm the meter is not already connected to another device. BLE devices connect to one host at a time. Close the meter's companion app if it is running on another phone or tablet.
3. Make sure Bluetooth is enabled on your phone/tablet.
4. Move within 30 feet of the meter. Metal equipment and conduit attenuate Bluetooth signals.
5. If using the Fieldpiece SC series, the meter may need to be in a specific mode before it broadcasts. Consult the Fieldpiece manual for BLE activation.

Power factor seems wrong (too high or too low)

Cross-reference with the motor type. An ECM blower at PF 0.60 is normal. A PSC compressor at PF 0.60 is abnormal and suggests a capacitor problem.

If PF reads above 1.0 or fluctuates wildly, the meter may be experiencing interference, or the clamp jaw is not fully closed around the conductor. Ensure the clamp closes completely and the conductor passes through the center of the jaw.

EER is not calculating even though I have electrical data

EER requires both electrical data (watts) and capacity data (from temperature, pressure, and airflow measurements). If your temperature probes or manifold are not connected, the app does not have enough data to calculate delivered BTU/h, and EER cannot be computed. Connect your full probe set - the electrical meter alone is not sufficient for EER.

YJACK AMP does not show amps in measureQuick

This is a known limitation. The Yellow Jacket YJACK AMP pairs with measureQuick via Bluetooth but does not transfer amperage data to the app. It appears connected but the amp reading remains blank. Use a different clamp meter from the compatible list for wireless amp data in measureQuick.

Should I use the iDVM510's thermocouple or dedicated temperature clamps?

The iDVM510 includes a K-type thermocouple input, and that temperature reading streams to measureQuick alongside the electrical data. However, dedicated wireless temperature clamps (Fieldpiece JL3PC, Testo 115i) are designed for pipe clamping with better thermal contact and faster stabilization. Use the iDVM510 thermocouple as a supplemental or ambient reading, not as your primary line temperature source.

The iDVM550 drops connection intermittently

The iDVM550 uses BLE 4.0 with a shorter effective range than newer BLE 5.0 devices. Keep your phone within 30-50 feet. Metal cabinets and conduit degrade the signal further. Position your device where it has a clear line of sight to the meter, or consider a meter with updated BLE (UEi DL599, CPS VOLT-100).
