What You'll Learn

• What measureQuick measures electrically: voltage, amperage, wattage, and power factor
• How the electrical pass/fail subsystem evaluates performance
• The failure thresholds: voltage imbalance, over/under voltage, amp draw vs rated
• How electrical readings connect to refrigerant-side and airflow diagnostics
• How to read the electrical section of the Diagnostics screen
• Common electrical faults and what they indicate about system health

What You'll Need

• Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
• Account: measureQuick account with active subscription
• Tools: Clamp-on ammeter and voltage probes compatible with measureQuick (see Electrical Meter Connection)
• Familiarity: Comfort with the refrigeration cycle basics (E1) and the measureQuick diagnostic screen
• Time: 8 minutes to read; ongoing reference during field diagnostics

What measureQuick Measures Electrically

measureQuick captures four core electrical parameters from connected meters:

These measurements feed into both the electrical pass/fail subsystem and the broader diagnostic picture. Wattage, for example, is used to calculate EER (BTU/hr per watt), which connects electrical performance directly to system efficiency.

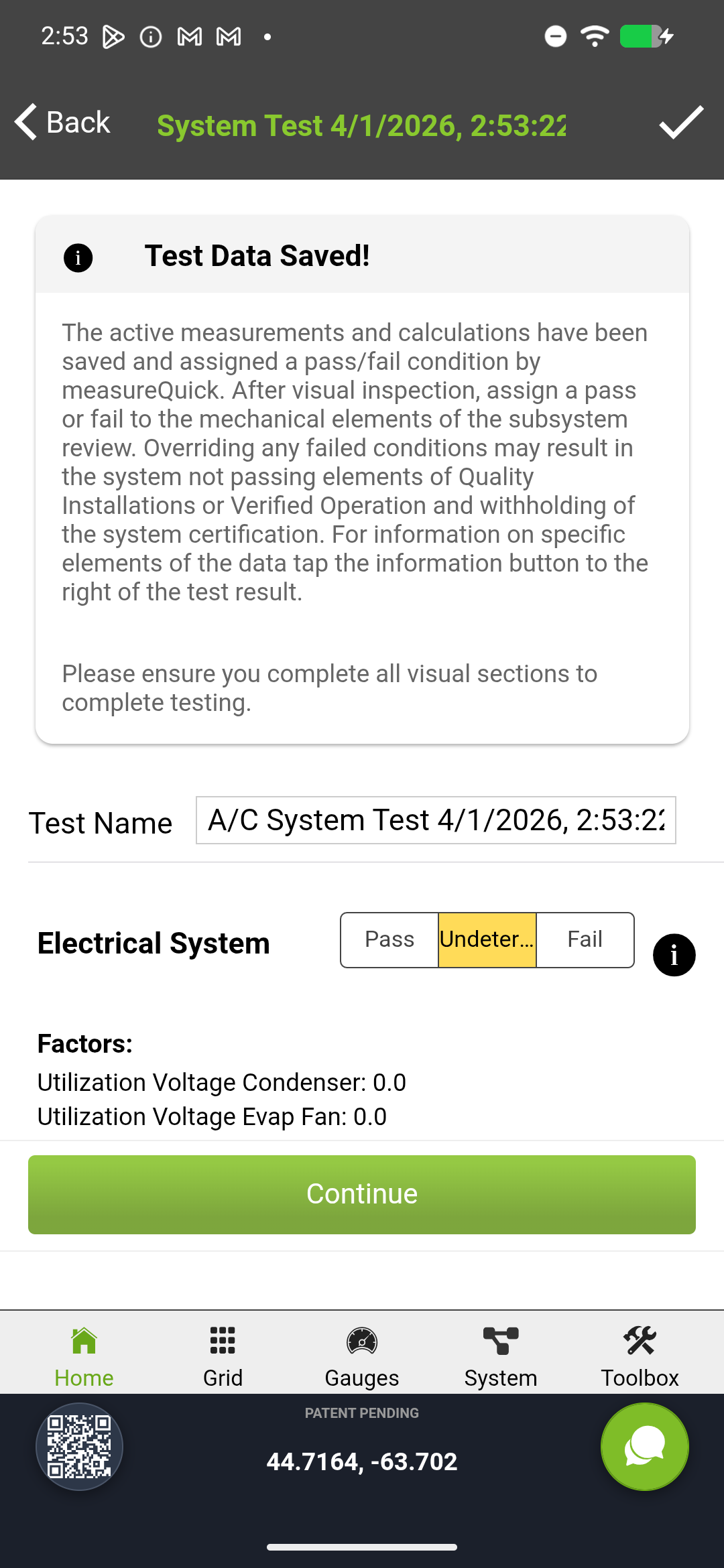

Subsystem review showing Electrical System pass/fail assessment with utilization voltage

Electrical Pass/Fail Criteria

The electrical subsystem (pf_electrical_result) evaluates three primary conditions:

Voltage Imbalance

On single-phase systems with two legs, measureQuick checks the difference between L1 and L2 voltage. A voltage imbalance greater than 2% is a concern. Voltage imbalance causes current imbalance, which causes uneven heating in motor windings. A 2% voltage imbalance can produce roughly a 10% current imbalance, accelerating motor wear. Severe imbalance (above 5%) can cause rapid compressor failure.

Over/Under Voltage

Equipment is designed to operate within a voltage range, typically the nominal voltage plus or minus 10%. A 230V-rated compressor should see between 207V and 253V at the terminals. Voltage outside this range stresses motor windings, contactors, and control boards. Low voltage is more common than high voltage and causes increased amperage draw as the motor works harder to deliver the same output.

Amp Draw vs Rated

measureQuick compares the measured amperage to the rated load amps (RLA) or full load amps (FLA) from the system profile. A compressor drawing significantly more than its rated amps is working harder than designed. This can indicate:

• A system operating under extreme conditions (very high outdoor temperature)
• A mechanical issue inside the compressor
• An airflow or refrigerant charge problem forcing the compressor to work against abnormal pressures

The electrical subsystem fails when any of these conditions exceed the acceptable threshold. In the V12 dataset, approximately 15% of tests show an electrical failure - making it one of the more common subsystem failures after refrigerant charge and air distribution.

How Electrical Connects to Other Diagnostics

Electrical readings do not exist in isolation. They are symptoms and indicators that connect directly to refrigerant-side and airflow conditions. measureQuick evaluates these relationships as part of its fault aggregation.

High Amp Draw + Low Superheat

The compressor is drawing excessive current while superheat is below the target range. This combination suggests liquid slugging risk - liquid refrigerant is reaching the compressor, which increases current draw as the compressor struggles to compress an incompressible fluid. This is a serious condition that can destroy the compressor.

High Amp Draw + High Head Pressure

The compressor is working hard against elevated discharge pressure. This combination points to a condenser-side restriction: a dirty condenser coil, a failed condenser fan motor, or recirculating discharge air. The compressor draws more amps because it is pumping against higher-than-normal resistance.

Low Amp Draw + Low Suction Pressure

The compressor is drawing less current than expected, and the suction side is starved. This pattern indicates low charge or a restriction on the metering device side. The compressor has less work to do because less refrigerant is circulating.

Low Power Factor

A power factor below 0.85 on a single-phase compressor typically means the run capacitor is weak or failing. The capacitor helps the motor maintain the correct phase angle between voltage and current. As it degrades, power factor drops, the motor runs less efficiently, and amp draw may increase. This is one of the few electrical issues that can be diagnosed without correlating to refrigerant-side data.

Reading the Electrical Section

The electrical section of the Diagnostics screen displays:

• Voltage per leg with target zone indicators (green if within the nominal range, yellow or red if outside)
• Total amperage compared to rated, shown as a value and as a percentage of rated load
• Wattage (real power), used in efficiency calculations
• Power factor, displayed as a decimal value

If the electrical subsystem fails, the pass/fail indicator (pf_electrical_result) turns red. You can tap the electrical section to see which specific condition triggered the failure - voltage, amperage, or a combination.

As with all 19 subsystems, you can override the electrical pass/fail result if your professional judgment differs from the app's determination. The override is logged (pf_electrical_override = 1) and the headline failure rate in reports reflects the post-override result.

Common Electrical Faults

Single-Phase Compressor on Wrong Voltage

A 208V compressor installed on a 240V circuit (or vice versa) will operate outside its design voltage range. measureQuick flags this as over- or under-voltage. The fix is not in the app - it is a wiring or transformer issue. But the diagnostic data documents the condition clearly.

Weak Run Capacitor

A degrading run capacitor lowers power factor and may increase amp draw. The compressor still runs, but it runs inefficiently and generates more heat. measureQuick does not directly measure capacitance, but the low power factor reading points you toward the capacitor as the likely cause. Confirm with a standalone capacitor test.

Corroded or Loose Connections

Voltage drop across corroded terminals or loose wire connections reduces the voltage reaching the compressor. You may see normal voltage at the disconnect but low voltage at the compressor terminals. If measureQuick shows low voltage and the utility supply is normal, check connections between the measurement point and the compressor.

Overloaded Compressor

Amp draw above rated with no refrigerant-side explanation (pressures and temperatures are within range) can indicate internal compressor wear. The motor windings are degrading and drawing more current to produce the same output. This is a progressive failure - amp draw will increase over time until the thermal overload trips or the compressor fails mechanically.

Safety

Electrical measurements carry inherent risk. Follow these practices:

• Clamp-on ammeters allow current measurement without breaking the circuit. You do not need to disconnect wires to measure amperage. Place the clamp around a single conductor (not the entire cable).
• Voltage probes require contact with live terminals. Always de-energize the circuit before making or removing direct electrical connections. Use the equipment disconnect.
• Never bypass safety devices (thermal overloads, fuses, breakers) to get a reading. If a safety device has tripped, diagnose why before resetting.
• Wet conditions increase electrical risk. Exercise additional caution when working around condensate, rain, or standing water.

Tips & Common Issues

My amp draw reading seems too high, but the system is running fine

Check the system profile. If the rated amps (RLA/FLA) entered in the profile are wrong, the comparison will be off. Verify the rated amps from the equipment data plate and update the profile.

Voltage looks fine at the disconnect but the app shows low voltage

The app reads what the connected meter reports. If your meter probes are at the disconnect but the compressor terminals have corroded connections, the compressor is seeing lower voltage than what you are measuring. Move the voltage measurement point to the compressor terminal block for the most accurate assessment.

Power factor is below 0.85 but the system is running normally

The system may be running, but it is not running efficiently. A weak run capacitor causes the motor to draw reactive current that does no useful work. The compressor will eventually overheat or fail. Replace the capacitor proactively.

The electrical subsystem passed, but I see a yellow flag on voltage

A yellow flag means the voltage is outside the ideal range but has not crossed the failure threshold. It is a warning. If the yellow flag persists across multiple visits, investigate the supply-side voltage or check for loose connections that cause intermittent drops.
