What You'll Learn

• Why return-side airflow is harder to measure than supply-side
• Methods for measuring airflow in a return air plenum
• How to use filter pressure drop for airflow estimation
• How to account for multiple return paths when measuring total return airflow
• Common return plenum configurations and the measurement challenges each presents
• How measureQuick uses return airflow data in its diagnostics

What You'll Need

• Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
• Account: measureQuick account with active subscription
• TrueFlow Grid: TEC TrueFlow Grid with adapter plates (for filter-slot measurement)
• Pressure gauge: TEC DG-1000 or DG-8 with static pressure probes
• Capture hood: CPS EasyHood ABM-200 or Testo 420 (for individual grille measurement)
• Tape measure: For measuring plenum and duct dimensions
• Prerequisite knowledge: Return duct airflow measurement (M3) and indoor probe placement (F2)
• Time: 20-40 minutes depending on system configuration

Why Return-Side Measurement Is Harder

Supply-side airflow is straightforward: air leaves the equipment through defined supply ducts and exits at registers with relatively small cross-sections and moderate velocity. The supply side is designed to move air efficiently to specific destinations.

The return side has the opposite characteristics. Return plenums and ducts are typically larger in cross-section than supply ducts because they serve the same airflow volume through fewer, larger openings. Larger cross-sections mean lower velocity. Lower velocity means smaller pressure signals, which makes direct measurement less precise.

Three factors compound the difficulty:

1. Lower velocity. A supply duct might carry air at 700-900 FPM. The return plenum often sees 300-500 FPM or less. At these velocities, Pitot tubes and anemometers produce readings with higher relative uncertainty.
2. Turbulent flow near the filter. Air entering the return plenum from multiple directions creates turbulence. The velocity profile across the plenum cross-section is uneven, with dead spots and high-velocity jets depending on where the return ducts enter.
3. Irregular geometry. Supply ducts are usually round or rectangular with consistent dimensions. Return plenums may be framed cavities, platform returns, panned joists, or open spaces under the air handler. Calculating cross-sectional area for these shapes is imprecise.

None of these problems make return measurement impossible. They mean you need to pick the right method for the configuration in front of you and understand the accuracy limits.

Methods for Return Plenum Measurement

Method 1: TrueFlow Grid at the Filter Slot

When the return filter is located at the air handler (not at the return grille), the TrueFlow Grid replaces the filter and measures the total airflow entering the equipment. This is the easiest and most accurate return-side measurement when the setup allows it.

This method captures all return airflow, including any duct leakage from unconditioned spaces. It does not distinguish between conditioned return air and leaked air. For duct leakage analysis, combine it with individual grille measurements (see M3).

Setup:

1. Remove the filter from the air handler filter slot.
2. Select the correct TrueFlow adapter plate for the filter opening dimensions.
3. Install the grid, seal the edges, and run the standard TrueFlow procedure (C12).
4. Record the result. measureQuick logs it with airflow_source = "trueflow".

Method 2: Pitot Traverse in the Return Trunk

When the return trunk is accessible and has a section of straight ductwork, a Pitot traverse (M4) can measure return airflow. This is practical for homes with exposed return ductwork in basements or utility rooms.

The traverse procedure is identical to a supply-side traverse. The challenge is finding enough straight duct. Return trunks often transition from duct to plenum within a few feet of the air handler. If you can get at least 3-4 duct diameters of straight run, a traverse is viable.

For low-velocity return ducts (below 500 FPM), use a hot-wire anemometer instead of a Pitot tube for better resolution.

Method 3: Filter Pressure Drop Estimation

Every air filter has a pressure-flow relationship: as airflow increases, the pressure drop across the filter increases. If you know the filter's pressure-drop curve and measure the actual pressure drop, you can estimate the airflow.

This is not as accurate as a TrueFlow reading, but it provides a useful cross-check or a reasonable estimate when direct measurement is not practical.

Steps:

1. Identify the filter brand, model, and MERV rating.
2. Look up the manufacturer's published pressure-drop curve. This is typically available in the filter specification sheet as a graph or table of pressure drop (in IWC) vs. airflow (in CFM) for the filter's face dimensions.
3. Measure the actual pressure drop across the installed filter using a manometer with probes on each side (one in the return plenum before the filter, one after the filter on the coil side).
4. Read the corresponding CFM from the manufacturer's curve.

Limitations: The curve is for a clean filter. A dirty filter has a higher pressure drop for the same airflow, so a dirty filter will underestimate the actual airflow. Filter curves also assume uniform air distribution across the filter face, which may not hold if ducts enter the plenum asymmetrically.

Method 4: Capture Hood at the Return Grille

If the filter is at the return grille rather than at the air handler, use a capture hood (CPS EasyHood or Testo 420) placed over the grille to measure the airflow entering the return system from the conditioned space. For multiple return grilles, measure each one and sum the readings.

This method measures only the air from the conditioned space. It does not capture duct leakage. That is useful if your goal is to compare conditioned-space return airflow to air-handler airflow for duct leakage estimation.

Accounting for Multiple Returns

Most residential systems have more than one return grille. Measuring total return airflow requires accounting for all return paths.

Dedicated Returns (One Return Per Room or Zone)

Newer construction often includes a return grille in each bedroom and main living area. To measure total return airflow:

1. Measure airflow at each return grille with a capture hood.
2. Sum all readings. This is the total conditioned-space return airflow.
3. Compare to the TrueFlow reading at the air handler (if available) to check for duct leakage.

On a system with 4-6 returns, this takes 20-30 minutes with a capture hood.

Central Return (One or Two Large Returns)

Older homes and many tract-built homes have one or two large return grilles, often in a central hallway. These grilles are large enough that a single capture hood may not cover the entire opening.

Options:

• Use the TrueFlow Grid at the air handler filter slot for total return airflow.
• If the grille has a standard filter size, the TrueFlow Grid may fit at the grille itself.
• For oversized grilles (over 25x25 inches), use multiple capture hood readings across the grille face and sum them.

Platform Return

A platform return uses the space beneath the air handler as the return plenum. Air enters through openings in the platform sides or bottom. These returns are common in closet or utility-room installations.

Measuring airflow in a platform return is difficult because the "plenum" is not a defined duct with measurable dimensions. The best approach is to place the TrueFlow Grid at the filter slot at the air handler inlet. This captures all air entering the equipment regardless of how it got into the platform space.

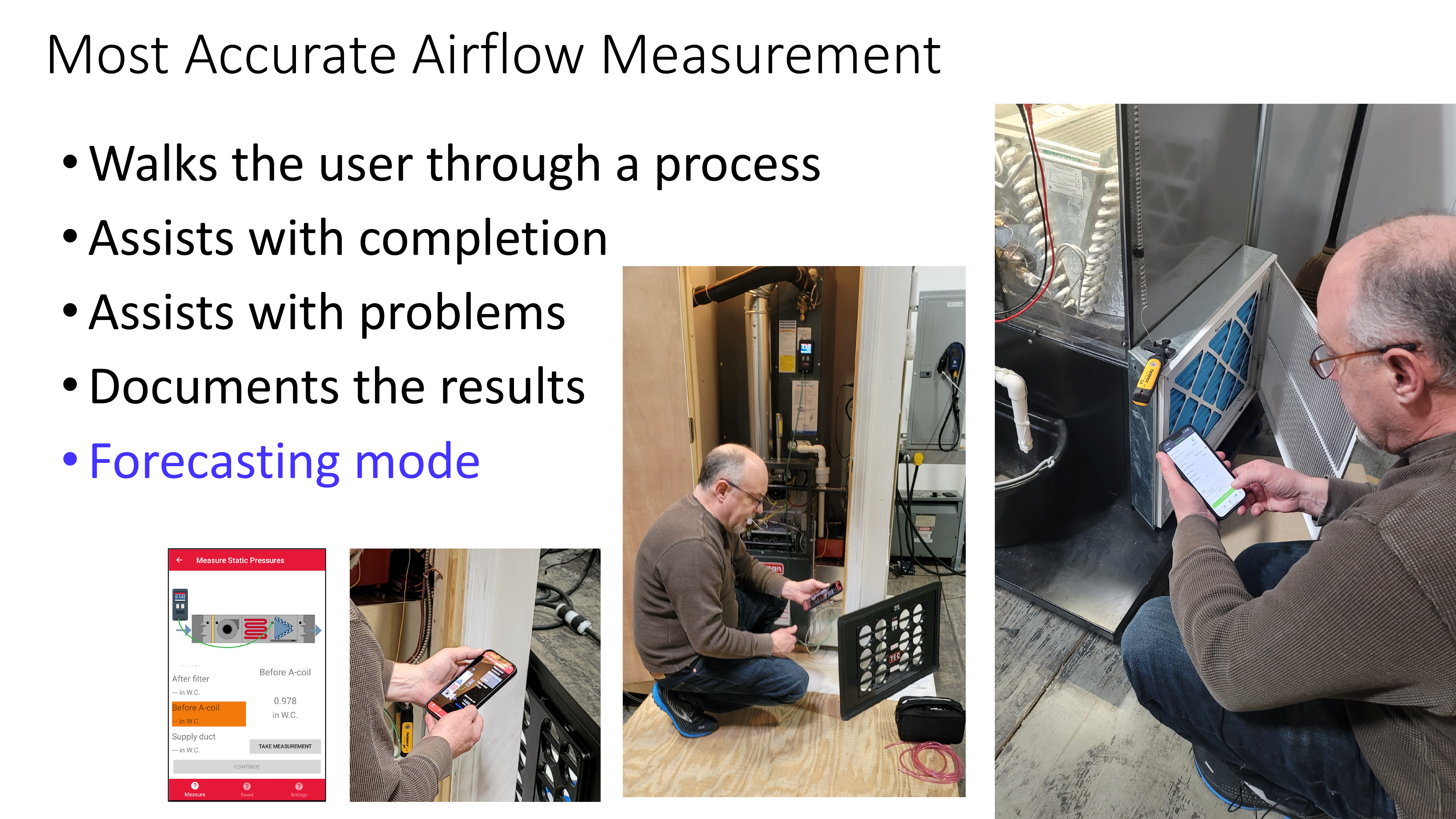

Technician with TrueFlow Grid installed at the air handler filter slot, using a smartphone to operate the TEC app during airflow measurement

How measureQuick Uses Return Airflow Data

measureQuick uses airflow data in several diagnostic calculations:

• Superheat and subcooling calculations. Airflow affects evaporator performance. Accurate airflow input produces more reliable refrigerant-side diagnostics.
• Capacity calculations. System capacity (sensible and total) depends on airflow volume and the temperature/enthalpy difference across the coil.
• CFM per ton evaluation. measureQuick compares measured airflow to the target range (typically 350-450 CFM per ton) and flags systems outside that range.
• Duct leakage screening. When combined with static pressure data, return airflow measurements help measureQuick's duct leakage screening identify whether return-side or supply-side leakage is the primary issue.

The source of the airflow data matters. A TrueFlow measurement (airflow_source = "trueflow") is weighted as a direct measurement in diagnostics. A manual entry (airflow_source = "manual") or an estimated value (airflow_source = "estimated") carries wider uncertainty, which measureQuick accounts for in its confidence assessment.

Tips & Common Issues

Return plenum pressure readings are unstable

Turbulence in the return plenum causes pressure fluctuations. Wait 5-10 seconds for the reading to settle before recording. If fluctuations persist, check for doors opening and closing in the conditioned space, wind effects on the building, or a blower motor with speed cycling (variable-speed motors adjusting to load).

Filter pressure drop does not match the manufacturer's curve

The most common reason is a dirty filter. A filter loaded with debris has a higher pressure drop for the same airflow. If the filter is visibly dirty, replace it and re-measure, or note the discrepancy in your documentation. Damaged filters (bent frames, torn media) can also produce readings that deviate from published curves.

Capture hood readings at individual returns do not sum to the TrueFlow total

A difference of 5% or less is normal and can be attributed to measurement tolerance and density variation. A difference of 10% or more suggests return duct leakage between the grilles and the air handler. See M3 for duct leakage analysis techniques.

Platform return has no measurable duct opening

Some platform returns pull air through gaps in the platform framing rather than through defined grilles. In this case, you cannot measure the airflow entering the platform from the conditioned space. Measure at the air handler filter slot with TrueFlow for total return airflow and use the static pressure screening to assess duct leakage.
