Using a Manifold in measureQuick

Using a Manifold in measureQuick

If you prefer to use a refrigerant manifold, mQ supports bluetooth capable manifolds from JB, Yellow Jacket, Fieldpiece, and Testo. Like the wireless probes, the manifold needs to be "Mapped" in the Toolbox screen of the Toolbox. The measurements from the manifold are actually separated and need to be assigned. It is somewhat confusing in that when mapped properly, it will appear as if they're mapped twice. Don't believe me? Check out the pictures below of Fieldpiece and Testo manifold mapping. JB and Yellow Jacket are identical, I just had these handy.

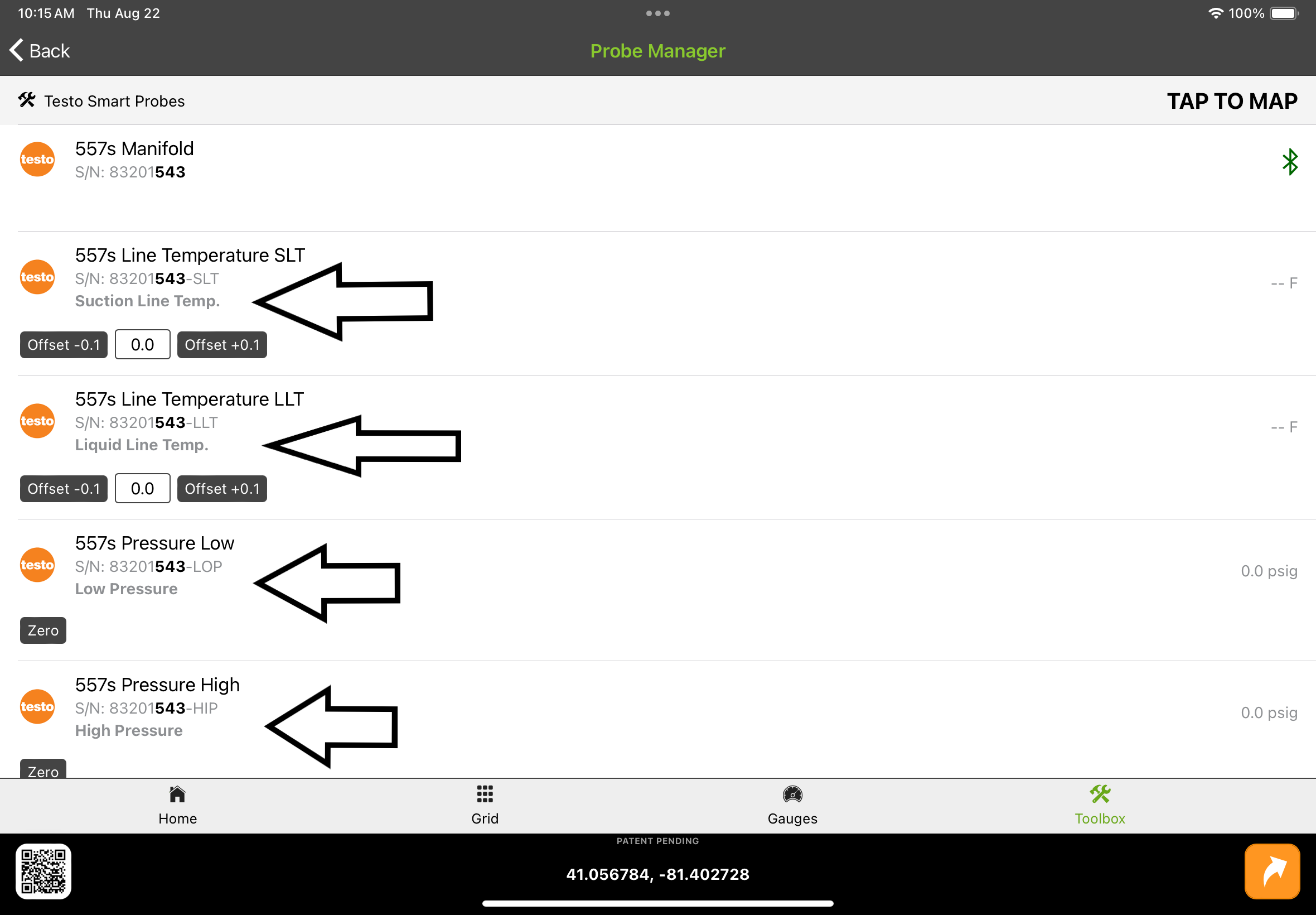

Fieldpiece manifold mapping in measureQuick Toolbox showing measurements assigned across two slotsTesto manifold mapping in measureQuick Toolbox showing measurements assigned across two slots

For iManifold or iConnect systems, see Pairing and Using Your iManifold System. For Yellow Jacket amp clamps, see Pairing Yellow Jacket Probes. Need help connecting tools? See How to Pair Bluetooth Tools.
