What You'll Learn

• How to use measureQuick to document CO readings for liability protection on every gas furnace service call
• How to maintain refrigerant handling records for EPA Section 608 compliance
• How venting verification records protect your company when issues arise
• How to create a documentation trail for warranty claims
• How measureQuick reports serve as insurance documentation and legal records of work performed

What You'll Need

• Account: measureQuick Premier Services subscription
• App version: measureQuick v3.5 or later
• Prerequisite knowledge: Combustion analysis fundamentals (E16) and interpreting combustion results (I10)
• Equipment: Combustion analyzer with Bluetooth connectivity for gas furnace documentation

Why Documentation Protects Your Business

Every service call creates potential liability. A gas furnace that produces dangerous CO levels after your visit. A refrigerant leak that a customer claims you caused. A warranty dispute where the manufacturer says the installation was faulty. In each case, the company with documented measurements has a defensible position. The company without documentation has only their word.

measureQuick turns every test into a timestamped, measurement-backed record stored in the cloud. This is not extra paperwork; it is the same data you collect during a normal diagnostic workflow, saved permanently and available when you need it.

Documenting CO Readings

The Safety Case

Carbon monoxide is the leading cause of poisoning deaths in the United States. Every gas furnace service call should include a CO measurement. measureQuick records CO readings as part of the combustion analysis workflow, creating a permanent record tied to the specific equipment, date, and technician.

What to Document

On every gas furnace service call, connect your combustion analyzer and record:

• CO level in the flue (CO air-free): The concentration of carbon monoxide in the exhaust stream
• Ambient CO in the space: CO levels in the room where the furnace is located
• O2 and CO2 percentages: Combustion efficiency indicators
• Stack temperature: Flue gas temperature
• Draft pressure: Confirms proper venting

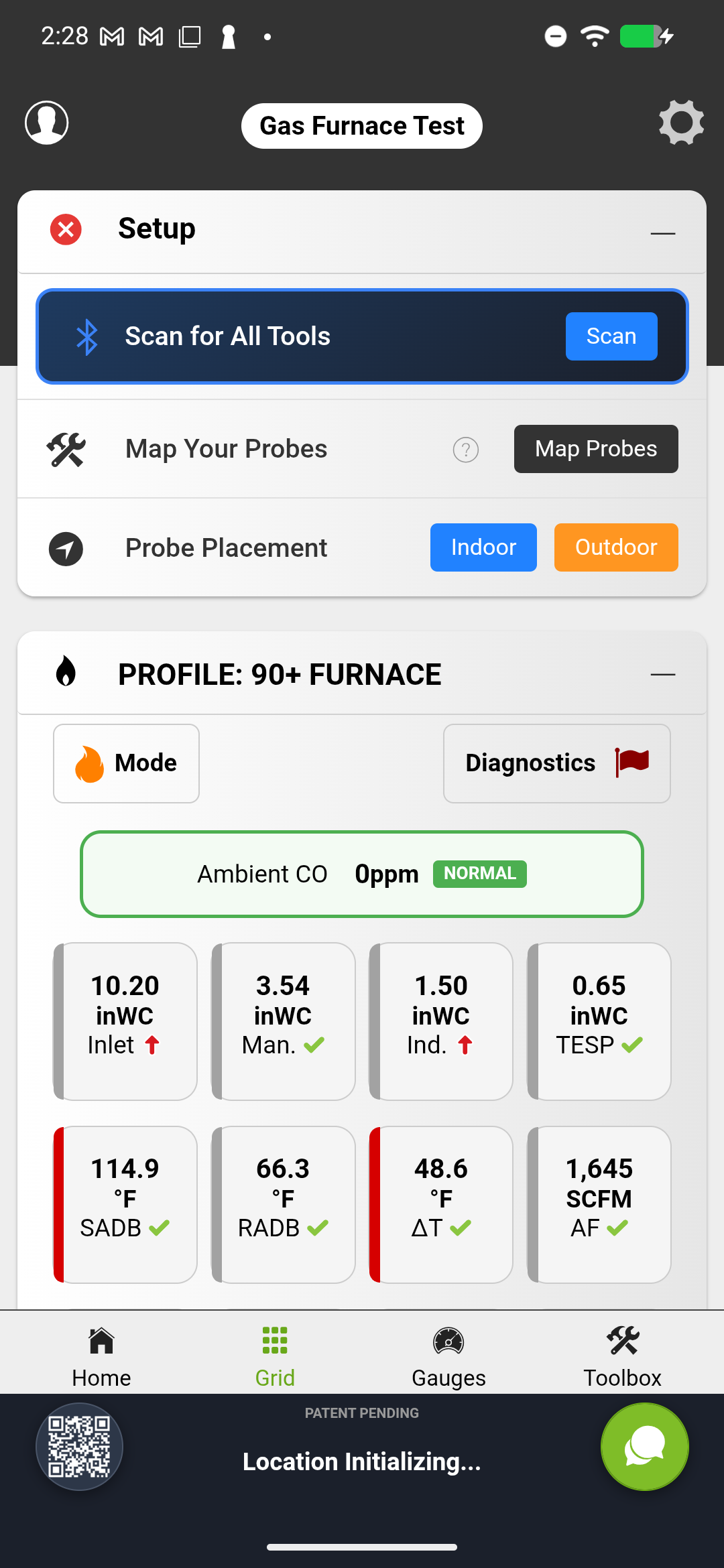

Gas Furnace grid showing Ambient CO, inlet pressure, manifold pressure, induced draft, TESP, temperatures, and airflow measurements

Why This Matters Legally

If a CO incident occurs at a property you serviced, the first question will be: "What were the CO readings when you were there?" With measureQuick, you have a timestamped answer stored in the cloud. Without it, you have nothing.

Document readings even when they are normal. A record showing 0 ppm CO at the time of service is powerful evidence that the condition developed after your visit.

When Readings Are Dangerous

If your combustion analysis reveals CO levels above safe thresholds, measureQuick flags the result as a failure. Document the reading, notify the customer in writing, and follow your company's safety protocol for shutting down unsafe equipment. The measureQuick record serves as proof that you identified the hazard and took appropriate action.

Refrigerant Handling Records

EPA Section 608 Requirements

The EPA requires that anyone handling refrigerants hold an appropriate Section 608 certification. Beyond certification, the regulations require documentation of refrigerant type and quantity for systems containing more than specified thresholds of regulated substances.

measureQuick captures refrigerant data as part of every cooling and heat pump test:

• Refrigerant type: R410A, R22, R454B, R32, and others, recorded during equipment profiling
• System pressures: High-side and low-side pressures documented with timestamps
• Charge assessment: Pass/fail determination based on manufacturer specifications

Creating a Compliance Trail

For every service call involving refrigerant:

1. Profile the equipment in measureQuick (refrigerant type is a required field)
2. Run a test-in before any refrigerant work
3. Document any refrigerant added or recovered in your project notes
4. Run a test-out after completing the work
5. Save and sync the project

The test-in/test-out pair with timestamps creates a record of system condition before and after your work. If a customer or regulator asks what you did to the system, the data is there.

R22 Phase-Out Documentation

R22 (Freon) is no longer manufactured. When servicing R22 systems, your measureQuick records document the current charge status, which is relevant for conversations about system replacement and for tracking remaining refrigerant inventory.

Venting Verification Records

The Scale of the Problem

measureQuick data from over 115,000 quality-filtered tests shows a 29.6% venting failure rate nationally. Nearly one in three gas furnace and water heater venting systems do not meet safety standards. Many of these failures go undetected because venting is not tested on every service call.

What to Document

When testing a gas-fired appliance, measureQuick evaluates venting as part of the combustion analysis:

• Draft pressure: Confirms that combustion gases are flowing up and out, not spilling into the living space
• CO in the vent: Measures carbon monoxide concentration in the exhaust
• Visual inspection results: Pass/fail for condensate, corrosion, and proper termination (recorded via the subjective subsystem checkboxes)

Protecting Your Company

If you test a system and venting passes, that record protects you. If you test a system and venting fails, that record proves you identified the issue. Either way, documentation works in your favor.

When venting fails:

1. Document the failure in measureQuick (the app flags it automatically based on measurements)
2. Inform the customer verbally and in writing
3. Note the customer's response in the project (did they authorize repair, decline, request a quote?)
4. If the customer declines repair of a safety issue, document that decision

A customer who later experiences a venting-related problem cannot claim your company was unaware of the issue if you have a timestamped record showing you identified and reported it.

Warranty Claim Documentation

The Problem with Verbal Documentation

Warranty claims frequently come down to "he said, she said" between the installer, the service company, and the manufacturer. The manufacturer asks: "Was it installed correctly? What were the operating pressures at startup? Was airflow within specification?" Without data, you cannot answer these questions definitively.

How measureQuick Helps

A test saved at the time of installation creates a permanent baseline record:

• Refrigerant charge: Pressures, subcooling, and superheat at startup confirm proper charging
• Airflow: Static pressure and temperature split confirm the duct system supports the equipment
• Electrical: Voltage, amperage, and power readings confirm electrical installation
• Equipment profile: Make, model, serial number, and refrigerant type linked to the specific test

When a warranty claim arises months or years later, you can pull the original installation test and show that the system met manufacturer specifications at the time of install. This is stronger evidence than a signed checklist.

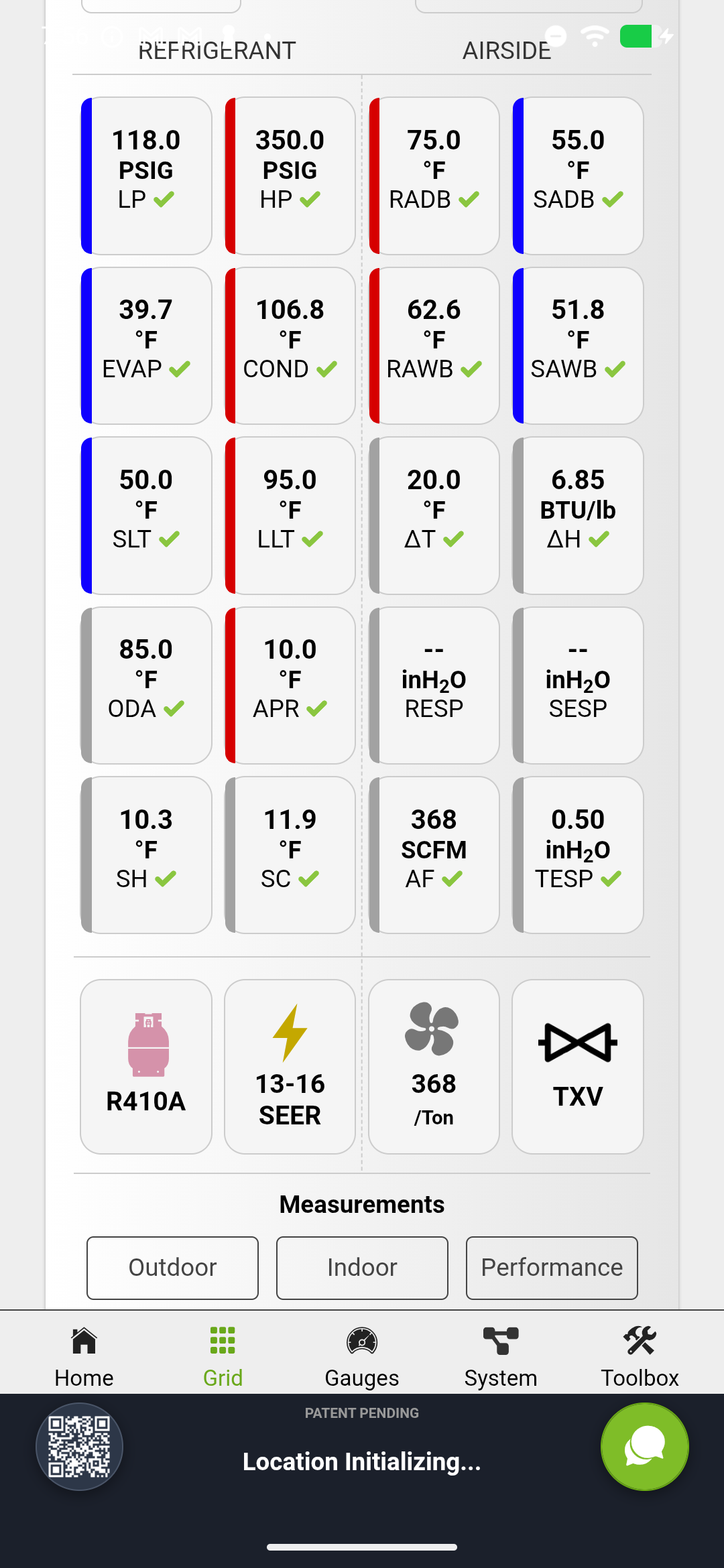

Grid view showing complete measurements with all values in green target ranges including superheat, subcooling, airflow, and static pressure

Return Visit Documentation

When you service a system that is under warranty and the manufacturer needs documentation, pull the project history in measureQuick. Show the original installation readings and the current readings. The comparison makes the case for whether the issue is an installation defect, a component failure, or normal wear.

Insurance Documentation

Proof of Proper Service

Some commercial and residential insurance policies require documentation of HVAC service. measureQuick reports provide:

• Timestamped evidence of service performed on a specific date
• Equipment identification by make, model, and serial number
• Measurement data confirming system performance at the time of service
• Technician identification showing who performed the work

A Vitals Report PDF exported from measureQuick contains all of this information in a professional format that insurance adjusters can review.

After an Incident

If an HVAC-related insurance claim occurs (water damage from a failed condensate system, fire from an electrical issue, CO exposure from a venting failure), your measureQuick records are discoverable evidence. Records that show you tested the relevant systems and documented their condition at the time of service put your company in a strong position.

Making Documentation Standard Practice

The key to compliance documentation is consistency. Documenting CO readings on some calls but not others creates a gap that works against you. If you have 50 service records with CO readings and one without, the one without is the call that will matter in a liability situation.

Company Policy Recommendations

1. Every gas furnace call includes combustion analysis. No exceptions. If the analyzer is broken, reschedule the combustion portion.
2. Every cooling/heat pump call includes a full test. Refrigerant type and pressures documented on every visit.
3. Every project is synced to the cloud the same day. Data on a phone that is not synced is data that could be lost.
4. Test-in before work, test-out after. This creates the before-and-after record that is most valuable for compliance and liability purposes.
5. Notes for safety declines. If a customer declines repair of a safety issue, the technician adds a note to the project documenting the conversation.

Tips & Common Issues

Do measureQuick records hold up legally?

measureQuick records are timestamped, measurement-based records stored on secure cloud servers. They are more defensible than handwritten notes or memory. Consult your company's legal counsel about specific documentation requirements in your jurisdiction.

What about states with specific combustion testing requirements?

Some states and municipalities require combustion analysis on every gas appliance service call. measureQuick's combustion workflow satisfies these requirements when the technician connects a combustion analyzer and saves the results. Check your local code requirements and configure your company workflow accordingly.

How long are records retained?

measureQuick stores project data in the cloud for the lifetime of an active Premier subscription. For long-term compliance, maintain your subscription and periodically export critical records as PDF reports for offline archival.

Our technicians say combustion testing adds too much time

A combustion analysis with a Bluetooth-connected analyzer takes 3-5 minutes. Compared to the liability exposure of an undocumented gas furnace visit, that time investment is minimal. Frame it as risk management, not extra work.

What if we find a dangerous condition the customer cannot afford to fix?

Document the finding, inform the customer, and provide a written estimate. If the customer declines, note the declination in the project. Your obligation is to identify and communicate the hazard. The measureQuick record proves you fulfilled that obligation.
