What You'll Learn

• How to calculate expected superheat and subcooling targets before deploying probes
• How target superheat for piston systems is derived from outdoor dry bulb temperature and return air wet bulb temperature
• How target subcooling for TXV systems is determined by manufacturer specifications (typically 8-14F)
• How measureQuick calculates and displays target ranges on the diagnostic screen
• Why pre-calculating targets before you measure helps you diagnose faster and catch profile errors earlier
• How to use the target values to set expectations before connecting probes

What You'll Need

• Device: iPhone (iOS 15+) or Android phone/tablet (Android 10+) with measureQuick installed
• Account: Active measureQuick account
• System profile: Equipment profiled with correct metering device, tonnage, refrigerant, and SEER
• Knowledge: Superheat and subcooling concepts (E3), DTD and CTOA (E4), system profiling (D2)
• Optional: Manufacturer charging chart or installation manual for the specific equipment
• Time: 10 minutes to read; 5 minutes to practice pre-calculation on a job

Why Pre-Calculate?

Most technicians connect probes, wait for readings to stabilize, and then check the pass/fail indicators. That works. But if you calculate expected targets before deploying probes, you gain two advantages:

1. You catch profile errors immediately. If your pre-calculated target does not match what measureQuick displays, something is wrong in the profile. You find the error before spending 15 minutes measuring against wrong targets.

2. You diagnose faster. When you already know the expected values, you can spot a problem the moment the first stable reading appears.

Target Superheat for Piston Systems

On piston (fixed orifice) systems, the target superheat is not a fixed number. It varies with operating conditions. The two inputs that matter:

1. Outdoor ambient dry bulb temperature - measured at the condenser inlet
2. Return air wet bulb temperature - measured at the return air grille or in the return duct

The Charging Chart Method

Manufacturers publish superheat charging charts that cross-reference outdoor dry bulb with return wet bulb to produce a target superheat. The chart looks like a grid:

These are representative values. Actual charging charts vary by manufacturer and model. The pattern is consistent: higher outdoor temperature raises the target; higher return wet bulb lowers it.

The key relationship: Target superheat increases as outdoor temperature rises and decreases as indoor humidity (wet bulb) rises.

How measureQuick Calculates It

measureQuick uses the same relationship. When you deploy an outdoor ambient probe and an indoor return probe (with wet bulb capability), the app reads both values and calculates the target superheat automatically. The target appears on the diagnostic detail screen alongside your measured superheat and the acceptable range (typically +/- 5F).

If you know the outdoor temperature and return wet bulb before you connect probes, you can estimate the target from a charging chart and compare it to what the app displays. If they do not agree, check your profile settings - particularly the metering device selection, refrigerant type, and SEER range.

Quick Estimation Without a Chart

For a rough estimate in the field:

• At 95F outdoor and 67F return wet bulb (common design conditions), target superheat is approximately 20-23F.
• For every 10F increase in outdoor temperature, add approximately 4-5F to the target.
• For every 5F increase in return wet bulb, subtract approximately 5-7F from the target.

These approximations help you set expectations. The app calculates the precise value.

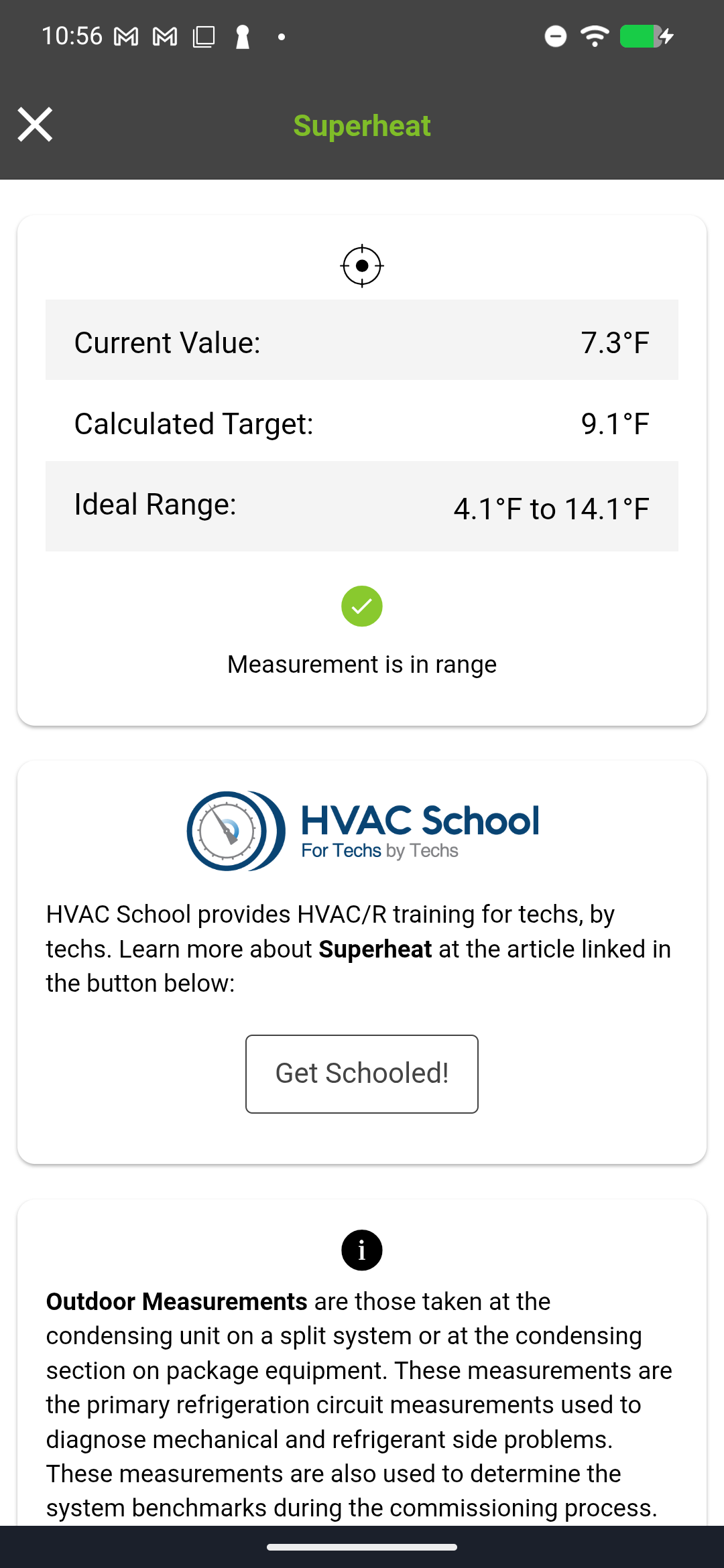

Superheat detail screen showing calculated target, measured value, ideal range, and in-range indicator

Target Subcooling for TXV Systems

On TXV systems, the target subcooling is simpler. It does not shift with operating conditions. The target comes from the equipment manufacturer.

Typical Ranges

When the manufacturer does not specify a subcooling target, 10F is the standard default. measureQuick uses this default unless you enter a custom value in the system profile.

Where to Find the Manufacturer's Target

1. Installation manual - Look for the charging instructions section. The target subcooling is usually specified with the metering device type.
2. Rating plate - Some newer equipment lists the target subcooling directly on the nameplate.
3. AHRI certificate - The matched system certificate may include charging specifications.
4. Manufacturer website/app - Many manufacturers provide charging specs in their mobile apps or online product databases.

How measureQuick Displays It

For TXV systems, the target subcooling appears on the diagnostic detail screen as a fixed value with an acceptable range (typically +/- 3F). Unlike superheat targeting, the subcooling target does not change with outdoor temperature or indoor conditions.

Tap the subcooling indicator on the Diagnostics screen to see:

• Target subcooling - the profile value (e.g., 10F)
• Acceptable range - the tolerance band (e.g., 7-13F)
• Measured subcooling - your current reading from the probes
• Pass/Fail status - whether the measured value falls within the acceptable range

Subcooling detail screen showing typical target, allowable range, measured value, and pass/fail indicator

Pre-Calculation Workflow

Here is a practical workflow for pre-calculating targets before deploying probes.

Step 1: Confirm the System Profile

Before you do any calculation, verify the profile is correct (see Profile Verification). The five critical fields:

1. Metering device (TXV or piston?)
2. Tonnage
3. Refrigerant type
4. SEER range
5. Condenser/evaporator match

Step 2: Measure Ambient Conditions

Before connecting probes to the system:

• Read the outdoor dry bulb temperature. A standalone thermometer or your phone's weather app gives you a starting point. Your probe will refine this once connected.
• Estimate the indoor conditions. Return air temperature in most homes is 70-76F dry bulb. Return wet bulb depends on humidity but is typically 60-70F in most U.S. climates during cooling season.

Step 3: Calculate Expected Targets

For piston systems: Use the outdoor dry bulb and estimated return wet bulb to look up the target superheat on a charging chart. Or use the quick estimation method above.

Example: Outdoor is 92F, return wet bulb is approximately 65F. From a typical charging chart, target superheat is approximately 22-25F. You expect the app to display a target in that range.

For TXV systems: The target subcooling is the manufacturer's specification, typically 10F +/- 3F. No condition-dependent calculation is needed.

Step 4: Deploy Probes and Compare

Connect your probes and wait for readings to stabilize (10-15 minutes). As values appear on the diagnostic screen:

• Compare the displayed target superheat or subcooling to your pre-calculated value. If they match, the profile is correct and you can trust the pass/fail evaluation.
• If the displayed target does not match your estimate, check the profile. The most common cause: wrong metering device or wrong SEER range.

What measureQuick Shows You

The Diagnostics screen displays targets and measured values for each subsystem. For piston systems, the screen shows target superheat (calculated from outdoor DB and return WB), measured superheat, the acceptable range (typically +/- 5F), and a green/yellow/red pass/fail indicator. For TXV systems, the screen shows target subcooling (from the profile or default 10F), measured subcooling, the acceptable range (typically +/- 3F), and the same color-coded pass/fail indicator.

As described in the commissioning walkthrough: "that's your target superheat, your target subcooling, your target total external static." measureQuick calculates all of these from the system profile and operating conditions.

Full Diagnostics screen showing superheat and subcooling targets alongside measured values, with CTOA and evaporator DTD visible

Video Walkthrough

• YouTube: . Jim Bergmann walks through the complete diagnostic display including target values: "that's your target superheat, your target subcooling, your target total external static."

• YouTube: . Covers the superheat tolerance: "it's a plus or minus 5 degrees of superheat, so we look at 5 degrees of saturation, that's an allowable range."

• YouTube: (24,378 views, 23:02). Full charging workflow demonstrating target calculation, probe deployment, and charge evaluation using superheat and subcooling targets

• YouTube: (20,805 views, 17 min). Complete charge workflow from start to finish, including interpreting target values and adjusting charge to hit the target range

• YouTube: (47,482 views, 1:00). Short clip on why measurement-based diagnostics (letting the app calculate targets) is more effective than manual calculation alone

• YouTube: (4,994 views, 4:52). Addresses common confusion about how measureQuick derives target values, particularly regarding dew point and bubble point calculations for blended refrigerants

Tips & Common Issues

Target superheat displayed by the app does not match my charging chart

Small differences (1-3F) are normal. measureQuick uses interpolated values from AHRI standard conditions, which may differ slightly from a specific manufacturer's chart. Larger differences (5F+) usually indicate a profile error. Check the metering device, refrigerant, and SEER range in the profile.

Target superheat seems unreasonably high or low

Target superheat depends on outdoor ambient and return wet bulb. If either probe is misplaced, disconnected, or reading incorrectly, the target calculation gets bad input. A return wet bulb probe inside the supply duct instead of the return will produce a wrong target. Check your probe placement before questioning the target.

I do not have a wet bulb measurement

measureQuick can calculate wet bulb from dry bulb and relative humidity. Some probe configurations provide this directly; others require manual entry. If you cannot get a wet bulb reading, the app may use a default or estimate. The accuracy of the superheat target depends on having accurate wet bulb data.

The subcooling target does not match what the manufacturer specifies

The default target in measureQuick may differ from the specific manufacturer's charging specification. Open the System Profile and enter the manufacturer's target subcooling value. This is particularly important for systems that specify non-standard targets (e.g., some Carrier systems specify 12-15F, some Lennox systems specify 8-10F).

Pre-calculation feels like extra work

It takes 60 seconds. And it catches profile errors before you spend 15-20 minutes taking measurements against wrong targets. On the first job where pre-calculation catches a wrong metering device selection, it pays for itself in saved time and avoided misdiagnosis.
