What You'll Learn

• What the AI System Profiler does and why it was introduced in measureQuick v3.5 (2025)
• How to photograph an equipment nameplate so the AI can read it
• What data the AI populates automatically: manufacturer, refrigerant, tonnage, SEER, metering device, design airflow
• Which equipment types the AI Profiler supports (condensers, air handlers, furnaces, heat pumps, package units)
• When the AI Profiler works well and when it falls short
• How to review and correct AI-populated fields before running diagnostics
• Why an accurate system profile is the foundation of every measureQuick diagnostic

What You'll Need

• Device: iPhone (iOS 15+) or Android phone/tablet (Android 10+) with measureQuick installed
• App version: v3.5 or later (AI Profiler requires 3.5+)
• Account: A measureQuick account (see Installing the measureQuick App)
• Camera access: The app needs permission to use your device camera
• Equipment: Access to an equipment nameplate (condenser, air handler, or furnace)
• Time: 10 minutes to read; 5 minutes to try on a live unit

Why System Profiling Matters

Every diagnostic calculation in measureQuick depends on the system profile. Superheat targets, subcooling targets, airflow requirements, Condensing Temperature Over Ambient (CTOA), and pass/fail thresholds all derive from the profile you set.

If the profile says TXV but the system has a piston, measureQuick evaluates subcooling against the wrong target. If tonnage is wrong, the airflow target is wrong. If the SEER range is wrong, the CTOA is wrong, and the refrigerant charge assessment shifts accordingly.

Wrong profile = wrong targets = wrong pass/fail results.

Before version 3.5, technicians entered all profile data manually. That meant reading a nameplate, interpreting the model number, looking up specs, and typing values into form fields. Manual entry was the single largest source of profiling errors. Typos in model numbers, incorrect tonnage selections, and wrong metering device choices produced diagnostic results that did not reflect the actual system.

The AI System Profiler solves this. You photograph the nameplate. The AI reads it and fills in the fields. The feature requires a Premier Services subscription (v3.5+, released 2025) and reduces manual data entry by 70% or more, saving 10-15 minutes per job.

As Jim Bergmann describes it: "a profile is... an educated guess about how the piece of equipment should perform." The AI Profiler automates the data collection step of that educated guess, but the technician still owns the verification.

Step-by-Step Guide

Step 1: Navigate to the Model & Serial Numbers Screen

The AI Profiler activates from the Model & Serial Numbers screen within a Guided Workflow. You reach this screen during either the indoor or outdoor phase.

Indoor equipment (air handler/furnace):

1. Start a Guided Workflow (see Workflow UI Navigation).
2. Work through the Indoor Workflow checklist.
3. Tap Enter AHU/Furnace M/N & S/N in the checklist.

Outdoor equipment (condenser/heat pump):

1. Continue to the Outdoor Workflow phase.
2. Tap Enter Condenser M/N & S/N in the checklist.

The Model & Serial Numbers screen opens with fields for the equipment make, model number, and serial number. At the top, you see "Nameplate & Equipment Photos" with two buttons: Library and Take Photo.

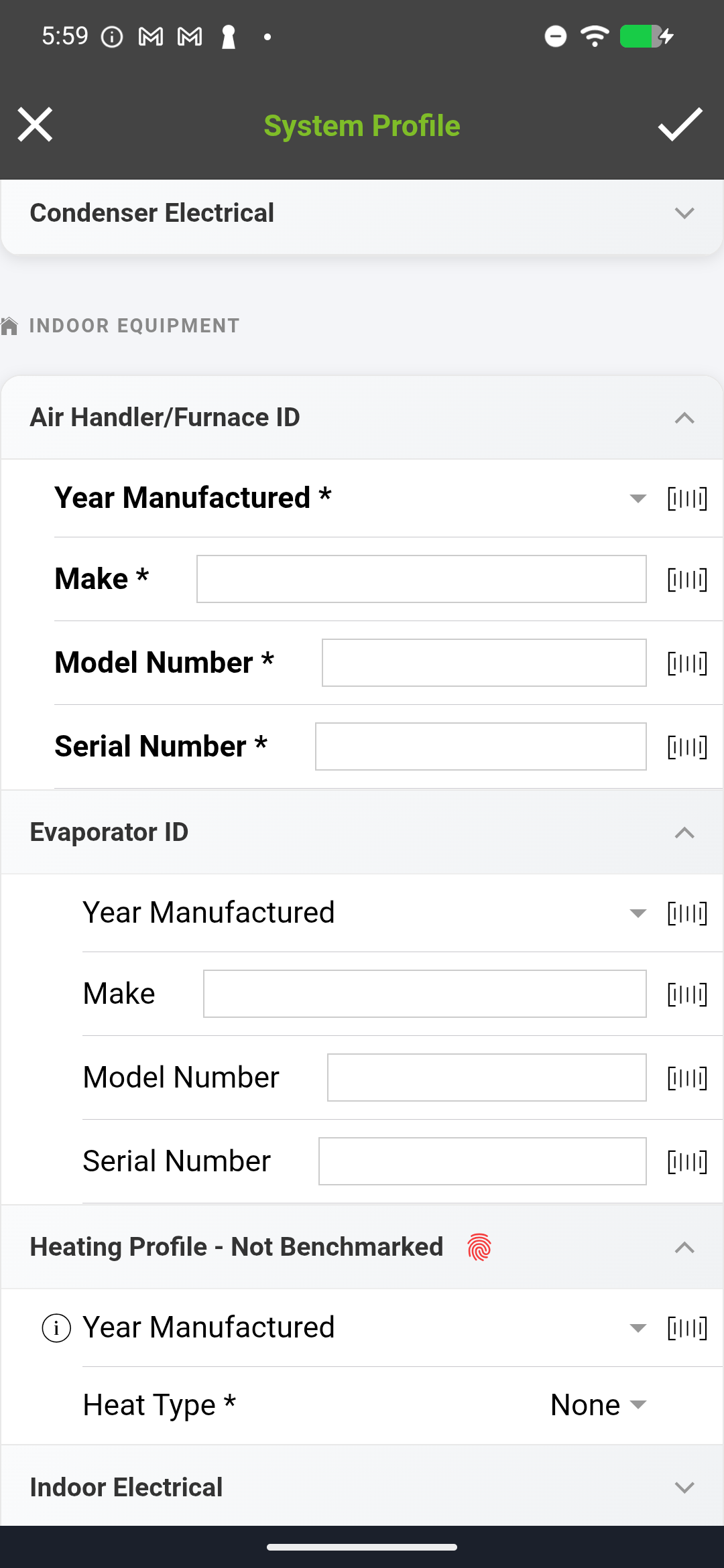

Model & Serial Numbers screen showing Nameplate & Equipment Photos section with Library and Take Photo buttons, plus Air Handler/Furnace fields for Year Installed, Make, Model Number, and Serial Number

Step 2: Photograph the Equipment Nameplate

Tap Take Photo. The device camera opens.

Position the camera so the nameplate fills the frame. The AI needs to read the model number and serial number, so focus on those lines. Tips for a clean capture:

• Get close. Fill 70-80% of the frame with the nameplate.
• Keep it flat. Photograph the nameplate straight on, not at an angle.
• Use flash if needed. Nameplates inside cabinet panels are often in shadow. The flash icon is in the camera toolbar.
• Avoid glare. Metal nameplates reflect light. Adjust your angle if you see a bright spot across the text.
• Hold steady. Blurry photos produce OCR errors. Brace your hand or use both hands.

Tap the shutter button to capture the photo. The app shows a preview. If the text is legible, tap Use Photo (or the equivalent confirm button). If not, retake it.

Camera interface aimed at an equipment nameplate, showing the shutter button and flash toggle

You can also tap Library to select a photo you already took. This is useful if you photographed the nameplate earlier during the Photo Documentation step.

Step 3: Wait for AI Processing

After you confirm the photo, the AI processes the image. This takes 2-5 seconds depending on your network connection. The AI performs three operations:

1. OCR (Optical Character Recognition) - Reads text from the nameplate image, extracting the model number, serial number, and any other visible data.
2. Model lookup - Matches the model number against a database of known HVAC equipment to retrieve specifications: manufacturer, refrigerant type, tonnage, SEER rating, metering device type, and other parameters.
3. Equipment age estimation - Decodes the serial number to estimate the manufacturing date and year installed.

When processing completes, the Model & Serial Numbers fields populate automatically with the extracted values.

Model & Serial Numbers screen with AI-populated fields showing manufacturer, model number, and serial number filled in

Step 4: Review the AI Results

The AI populates the following fields when it finds a match:

Tap Continue to proceed to the System Profile screen. The AI carries its findings forward and pre-fills the cooling/heating profile parameters:

Check every field. The AI is accurate on most major manufacturers, but it is not infallible. Verify each value against what you know about the equipment. Pay particular attention to:

• Metering device. The nameplate does not always specify whether the indoor coil uses a TXV or piston. The AI infers this from the model number, but the indoor coil may have been replaced with a different metering device. Check the actual metering device on the equipment.
• Tonnage. Multi-position or variable-capacity equipment can confuse the lookup. Confirm the tonnage matches the outdoor unit rating plate.
• Refrigerant. Systems converted from R22 to a drop-in replacement (e.g., R407C, MO99) will still show R22 based on the original model number. Set the refrigerant to whatever is actually in the system.

Step 5: Set Design Airflow

The AI does not set design airflow directly. After the AI populates tonnage, the app calculates a default nominal airflow based on your climate zone selection.

Tap the Nominal Airflow field to open the Design Airflow screen. Three climate-based options appear:

• 350 SCFM/Ton - Optimized for warm-humid climates (Southeast, Gulf Coast)
• 400 SCFM/Ton - Optimized for moist climates (most of the U.S.)
• 450 SCFM/Ton - Optimized for dry climates (Southwest, Mountain West)

Select the option that matches your region. A climate zone map on the screen shows the recommended CFM/ton for each area. If you have the manufacturer's specified airflow from installation documents, use the Advanced Targets toggle to enter a custom value.

Step 6: Verify Efficiency Standard and SEER/CTOA

Tap the Efficiency Standard field. A modal presents four options:

• SEER - For equipment manufactured before January 2023
• SEER2 - For equipment manufactured January 2023 or later
• SCOP (International) - For non-U.S. markets
• Energy Stars (Australia) - For Australian markets

Select the correct standard for your equipment.

Next, tap the SEER field to open the Choose SEER/CTOA screen. The app groups efficiency into four ranges:

Each range sets a CTOA (Condensing Temperature Over Ambient) value. CTOA is the expected temperature difference between the condensing temperature and the outdoor ambient temperature. Higher-efficiency equipment has a lower CTOA because it uses a larger condenser surface area.

The AI typically selects the correct range. Confirm it matches the equipment's rated SEER. If you are unsure, check the nameplate or the AHRI certificate.

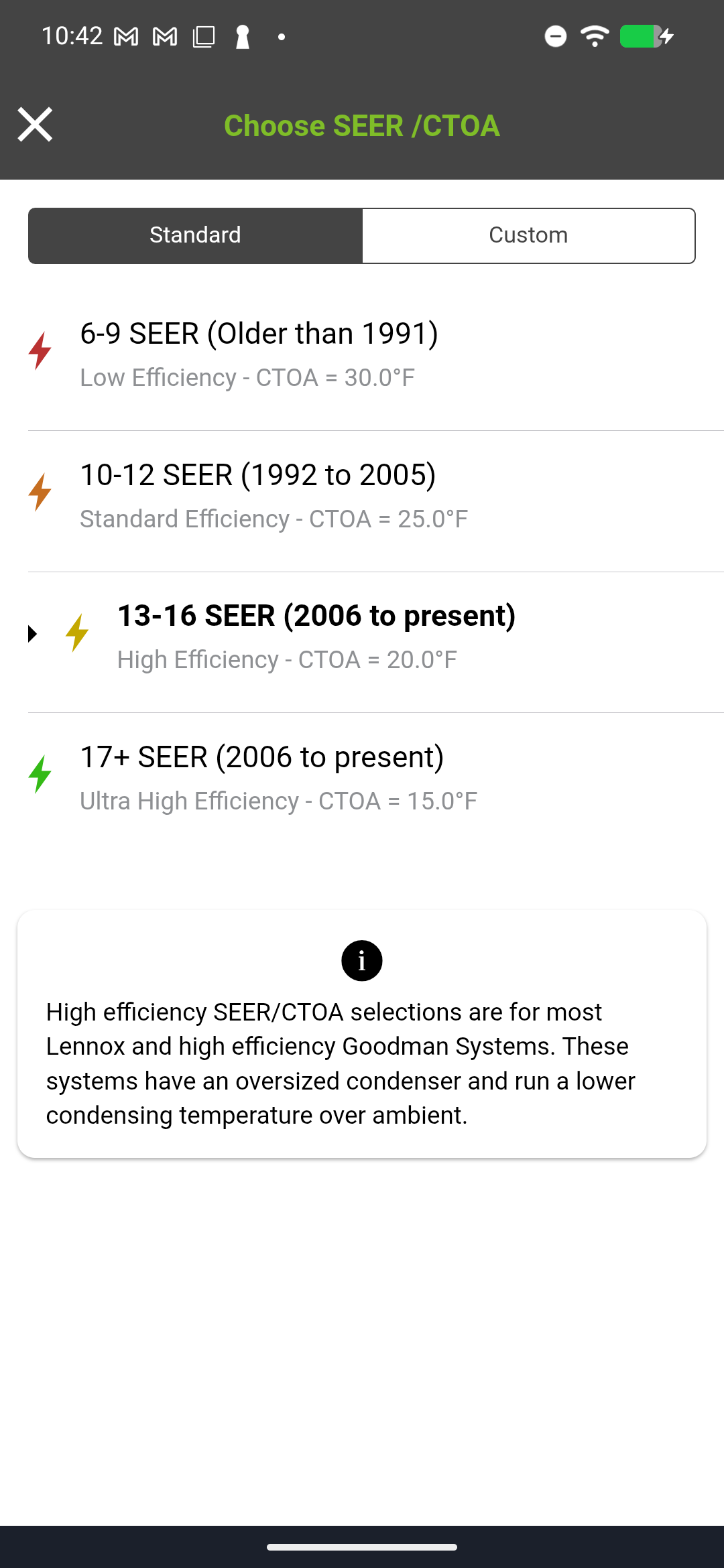

Choose SEER/CTOA screen showing the four efficiency ranges with corresponding CTOA values and era descriptions

Step 7: Verify Metering Device

Tap the Metering Device field. Five options appear:

• TXV (Thermostatic Expansion Valve)
• Piston (Fixed Metering Device)
• Capillary Tube (Fixed Metering Device)
• EXV (Electronic TXV)
• AXV (Automatic Expansion Valve)

The metering device determines which diagnostic method measureQuick uses for refrigerant charge assessment:

• TXV systems: Evaluated by subcooling. The target subcooling varies by manufacturer - it ranges from 6 to 18 degrees on the equipment data plate, not always the default 10. Always check the data plate for the manufacturer's specified subcooling target rather than accepting the default value.
• Piston systems: Evaluated by superheat. Target superheat varies with indoor wet bulb and outdoor dry bulb temperatures.

Subcooling target accuracy matters. The AI profiler sometimes misses the subcooling target from the data plate. If the manufacturer specifies a subcooling target of 14 and the app defaults to 10, your charge assessment is off by 4 degrees - enough to mask an overcharge or flag a false undercharge. After the AI populates the profile, verify the subcooling target against the data plate and correct it if needed.

If the AI selected TXV but the system has a piston (or vice versa), the charge assessment will use the wrong method. This is the most consequential profiling error. Always confirm the metering device visually at the indoor coil before proceeding.

Step 8: Confirm and Complete the Profile

After verifying all fields, check the Verify Profile confirmation checkbox (new in 3.6). This checkbox requires you to explicitly confirm that you have reviewed the profile data before proceeding. It supports the "trust but verify" principle: the AI does the data entry, but the technician owns the accuracy.

Then tap the checkmark (top right) on the System Profile screen to save. The workflow marks the "Profile System" task as complete and returns you to the workflow checklist.

The system profile is now locked in for this test. All subsequent diagnostic calculations, pass/fail evaluations, and the Vitals score will use these parameters.

Quick Profiles (New in 3.6)

Quick Profiles are company-level equipment templates that pre-populate make, model, tonnage, refrigerant type, nominal airflow, and metering device. For companies that install or service a limited set of equipment configurations, Quick Profiles reduce the profiling step to selecting a template and capturing the serial number with a photo.

When a Quick Profile is selected, the AI profiler still reads the nameplate photo to extract the serial number and year installed. The remaining fields come from the template. This combination - template data plus AI serial capture - gets a complete profile in seconds.

To use a Quick Profile during a job:

1. At the profiling step, select Quick Profile instead of Fresh Profile.
2. Choose from the available company templates.
3. Fields auto-populate from the template.
4. Take a photo of the nameplate so the AI captures the serial number.
5. Check the Verify Profile confirmation checkbox.
6. Continue to measurements.

Admins create and manage Quick Profiles from Company Settings. Profiles can be named, activated, and deactivated. For the full setup guide, see Quick Profiles (Equipment Templates).

Streamlined Profile Page (New in 3.6)

The profile entry screen has been redesigned in 3.6 for faster data entry and a cleaner layout. The streamlined page consolidates the equipment identification and diagnostic profile fields into a more logical flow, reducing the number of taps needed to complete a profile.

When the AI Profiler Works Well

The AI Profiler performs best in these conditions:

• Major manufacturers. Carrier, Trane/American Standard, Lennox, Goodman/Amana/Daikin, Rheem/Ruud, York, Bryant, Heil, Tempstar, and other widely distributed brands have strong model number coverage in the lookup database.
• Clean, legible nameplates. Factory-original nameplates with clear printing and minimal weathering produce the best OCR results.
• Standard residential equipment. Split systems, package units, and gas furnaces in the 1.5-5 ton range are well represented.
• Post-2000 equipment. Newer model number formats are better documented in manufacturer databases.

When it works, the AI Profiler reduces manual data entry by 70% or more per job.

When to Expect Manual Correction

The AI may struggle or return incomplete results in these situations:

• Weathered or damaged nameplates. Faded text, peeling labels, or corroded plates reduce OCR accuracy. If the AI returns partial results, fill in the remaining fields manually.
• Handwritten or aftermarket labels. Some replacement equipment or field-modified systems have handwritten labels. The AI cannot read handwriting reliably.
• Niche or regional manufacturers. Smaller brands with limited model number documentation may not appear in the lookup database.
• Very old equipment. Pre-1990 systems with non-standard model number formats may not match.
• Converted refrigerant systems. The AI identifies the original refrigerant from the model number. If the system was converted (e.g., R22 to R407C), you must manually change the refrigerant field to match the current charge.
• Mismatched indoor/outdoor units. The AI profiles each piece of equipment independently. If the condenser is 3 tons and the air handler is rated for 3.5 tons, each nameplate scan will return different tonnage values. Set the profile to match the outdoor unit rating.
• Poor lighting or blurry photos. Retake the photo rather than accepting a blurry scan. The AI cannot extract data it cannot read.

When the AI returns no match or incorrect results, fall back to manual entry. See Manual System Profiling for the complete manual entry procedure.

Outdoor Equipment: Repeat for the Condenser

The AI Profiler works the same way for outdoor equipment. During the Outdoor Workflow phase:

1. Tap Enter Condenser M/N & S/N in the outdoor checklist.
2. Tap Take Photo and photograph the condenser nameplate.
3. Review the AI-populated fields (manufacturer, model, serial, year).
4. Tap Continue to carry the data into the system profile.

The condenser nameplate scan is particularly important because it determines the manufacturer, refrigerant type, and SEER rating for the system. If you scan both the indoor and outdoor nameplates, the system profile merges the data from both pieces of equipment.

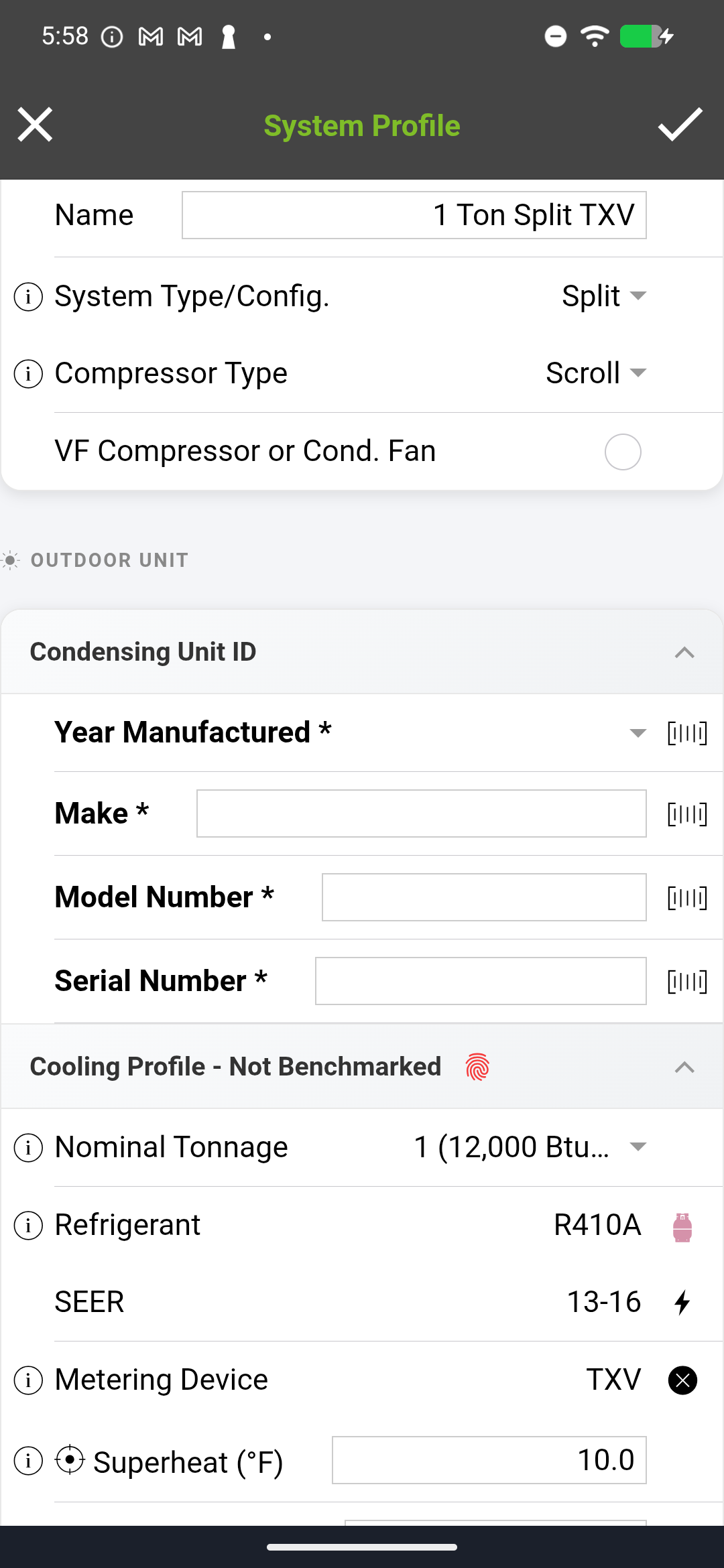

Outdoor Model & Serial Numbers screen showing condenser equipment fields with Nameplate & Equipment Photos section

Video Walkthrough

• YouTube: (975 views, 1:12). Official introduction of the AI Profiler feature, published 2025-02-06. Shows the nameplate photo capture and automatic field population

• YouTube: (499 views, 1:39). First-hand field reaction to using the AI Profiler on a live unit, published 2025-02-07

• YouTube: (1,714 views, 1:57). Demonstrates AI Profiler reading damaged or hard-to-read nameplates, published 2025-07-31

• YouTube: (856 views, 2:15). Short clip showing the time savings from AI-based profiling vs. manual data entry, published 2025-02-12

Tips & Common Issues

The AI returned the wrong tonnage

The model number may encode tonnage differently than expected, or the indoor and outdoor units may be different capacities. Check the outdoor unit rating plate for nominal capacity in tons or Btu/h. A "3" in the tonnage field means 36,000 Btu/h; a "2" means 24,000 Btu/h. Set tonnage to match the condenser.

The AI shows R22 but the system was converted

The AI reads the original model number, which specifies R22 for older equipment. If the system now contains R407C, MO99, or another replacement refrigerant, tap the Refrigerant field and select the correct refrigerant from the list. Favorites (R410A, R22, R404A, R32, R454B) appear at the top; search for others in the full list below.

The metering device selection seems wrong

The AI infers the metering device from the model number, but the indoor coil may have been replaced. TXV coils and piston coils look different physically. If you are unsure, look at the metering device on the liquid line entering the evaporator coil. A TXV has a sensing bulb clamped to the suction line; a piston has no external components. This distinction determines whether measureQuick evaluates charge by subcooling (TXV) or superheat (piston).

As Jim Bergmann explains in his app walkthrough: "I set the type of metering device - thermostatic expansion valve, piston, capillary tube, the electronic expansion valve, or automatic expansion valve." The five options in the app correspond to different physical devices and different charge assessment methods.

The photo did not produce any results

Retake the photo with better lighting and closer framing. If the nameplate is too damaged to read, enter the data manually: tap each field (Make, Model Number, Serial Number) and type the values. Then set the system profile fields yourself. See Manual System Profiling.

I scanned the nameplate but the System Profile still shows red warnings

A red "Not Benchmarked" label on the Cooling Profile header means one or more required fields are missing or incomplete. Check that all of the following are set: Nominal Tonnage, Refrigerant, Efficiency Standard, SEER/CTOA, and Metering Device. The AI may have populated some fields but not all. Fill in any remaining gaps.

Should I scan both indoor and outdoor nameplates?

Yes. The indoor nameplate identifies the air handler or furnace (make, model, serial). The outdoor nameplate identifies the condenser (make, model, serial, refrigerant, SEER). Both are required for a complete system profile and a complete test record. The workflow prompts you to scan each one at the appropriate step.

Can I use the AI Profiler outside of a Guided Workflow?

The AI Profiler is available within Guided Workflows at the Model & Serial Numbers step. If you are running a Quick Test instead of a Guided Workflow, you will set the system profile manually.

Common AI Profiler Errors

Based on observations across 6 training events, these are the most frequent AI profiler mistakes. Instructors reinforce "trust but verify" at every session for good reason.

Subcooling target missed or defaulted. The AI often misses the manufacturer's subcooling target from the data plate. Subcooling targets are not universal - they range from 6 to 18 depending on the manufacturer and model. During one training event, a student found a target of 6 on the data plate when the AI had assumed 10. A 4-degree error is enough to mask an overcharge or flag a false undercharge. After every AI profile, check the data plate for the manufacturer's specified subcooling target and correct the value if needed.

Static pressure misread. The AI may misread static pressure values from the data plate, returning 5.0 or 0.2 instead of the correct 0.5. If the static pressure target looks implausible, verify it against the data plate manually.

Old, faded, or damaged data plates. Weathered nameplates produce unreliable OCR results. If the photo quality is poor or the nameplate is physically degraded, skip the AI profiler and enter the profile manually. A partial or incorrect AI read is worse than manual entry, because technicians may not notice the errors. See Manual System Profiling.

Always verify tonnage, refrigerant, and metering device. These three fields have the greatest impact on diagnostic accuracy. The AI infers them from the model number, but replacement components, refrigerant conversions, and non-standard configurations can make the inference wrong. Confirm each one against the physical equipment before proceeding.

The SEER/CTOA selection matters more than it looks

CTOA (Condensing Temperature Over Ambient) directly affects the subcooling and superheat targets that measureQuick uses. A 13-16 SEER system uses CTOA = 20 F. A 10-12 SEER system uses CTOA = 25 F. Selecting the wrong SEER range shifts the target by 5 F, which is enough to flip a borderline pass/fail result. Confirm the SEER rating from the nameplate or AHRI certificate.
