What You'll Learn

• How to identify low airflow from measureQuick data and field observations
• A systematic five-step diagnostic approach to find the cause of low airflow
• How to use the TESP budget to isolate which component is creating the restriction
• Why 70%+ of systems exceed 0.5" static pressure and what that means for airflow
• measureQuick diagnostic indicators that point to low airflow conditions
• How to connect low airflow findings to remediation recommendations

What You'll Need

• Device: iPhone (iOS 15+) or Android phone (Android 10+) with measureQuick installed
• Account: measureQuick account with active subscription
• TrueFlow Grid: TEC TrueFlow Grid for direct airflow measurement
• Pressure gauge: TEC DG-1000 or DG-8 with static pressure probes
• Manometer probes: For measuring pressure at return, filter, coil, and supply positions
• Flashlight and mirror: For inspecting evaporator coils, blower wheels, and ductwork
• Prerequisite knowledge: TESP measurement (E9), CFM per ton (E14), component pressure drops (I8)
• Time: 30-60 minutes for diagnosis depending on system complexity

How to Identify Low Airflow

Low airflow does not always announce itself with obvious symptoms. The system may run, cool the house, and reach setpoint, while quietly operating at 60-70% of design airflow. The penalties accumulate silently: reduced capacity, higher energy consumption, shortened equipment life, and poor dehumidification.

Measured Indicators

These measurements confirm low airflow:

• CFM below 350 per ton. The standard minimum for cooling is 350 CFM per ton. A 3-ton system should move at least 1,050 CFM. Below this threshold, evaporator performance degrades significantly.
• TESP above 0.5" WC. Most residential equipment is rated for a maximum of 0.50" total external static pressure. Higher TESP means the duct system is more restrictive than the equipment was designed for. The blower cannot deliver rated airflow against excessive resistance. measureQuick's V12 data shows that over 70% of tested systems exceed this 0.5" threshold, making high static pressure the most common field condition rather than an exception.
• High evaporator temperature drop (DTD). When airflow is low, air spends more time crossing the evaporator coil and gives up more heat per cubic foot. The temperature difference between return air and supply air increases beyond the normal 18-22F range. A DTD above 22-24F suggests low airflow.
• Low supply-return delta-T on heating systems. On furnaces, low airflow produces a high temperature rise across the heat exchanger, which can exceed the manufacturer's rated range and trigger a high-limit safety.

measureQuick Diagnostic Indicators

measureQuick flags several conditions associated with low airflow:

• pf_airflow failure indicates measured or estimated airflow is outside the acceptable range.
• High evaporator DTD appears in the test diagnostics when the temperature spread is excessive.
• Low superheat on piston systems. Reduced airflow lowers the evaporator load, which reduces superheat. On piston (fixed orifice) systems, low superheat combined with low airflow is a pattern that points to insufficient air across the coil, not an overcharge.
• Low subcooling on TXV systems. A TXV compensates for low airflow by throttling back refrigerant flow, which can reduce subcooling below normal operating range.

Field Observations

• Ice on the suction line or evaporator coil (in cooling mode)
• System running continuously without reaching setpoint
• High-limit lockout on gas furnaces
• Homeowner complaints about uneven temperatures or humidity

Systematic Diagnostic Approach

Work through these five checks in order. Each step narrows the cause. Fixing the first problem you find may resolve the airflow deficit entirely, or it may reveal a second contributing factor.

Step 1: Check the Air Filter

A dirty filter is the single most common cause of low airflow. It is also the easiest to fix.

What to do:

1. Remove the filter and inspect it visually.
2. Measure the pressure drop across the filter with the manometer. Compare to the manufacturer's rated pressure drop for that filter at the system's rated airflow.
3. A clean standard-efficiency filter (MERV 8) typically drops 0.05-0.10" WC. A heavily loaded filter can exceed 0.30" WC.

What it tells you: If the filter pressure drop accounts for a large share of the TESP, replacing the filter is the first correction. Re-measure TESP and airflow after replacing the filter. If airflow returns to target, the diagnosis is complete.

A high-MERV filter (MERV 13 or above) in a system not designed for it can create chronic low airflow even when the filter is new. The filter media is more restrictive by design. Check whether the system was designed for the installed filter rating.

Step 2: Check the Evaporator Coil

A dirty evaporator coil increases the pressure drop across the coil, reducing airflow. Unlike the filter, the coil cannot be replaced quickly. But measuring the coil pressure drop tells you whether it is contributing to the problem.

What to do:

1. Measure pressure on each side of the evaporator coil (between the filter and the coil, and between the coil and the supply plenum).
2. A clean coil typically drops 0.10-0.20" WC. A dirty coil can exceed 0.40" WC.
3. If possible, inspect the coil visually. Look for dirt, debris, pet hair, or biological growth on the upstream face.

What it tells you: High coil pressure drop confirms the coil is restricted. Cleaning the evaporator coil (chemical wash or steam clean) is the correction. Re-measure after cleaning to verify improvement.

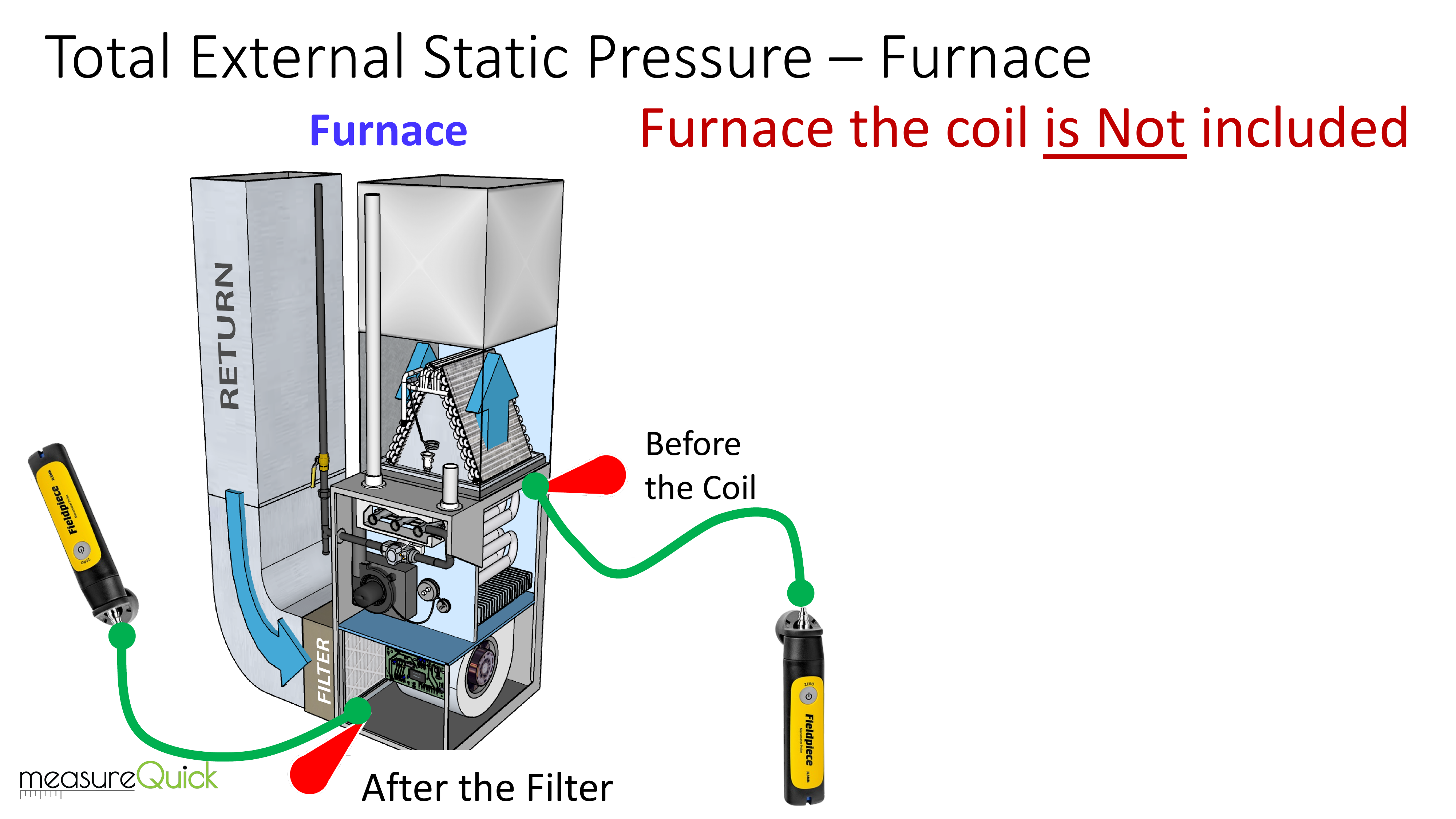

Total External Static Pressure measurement on a furnace showing wireless pressure probes positioned at Before Coil and After Filter measurement points

Step 3: Check the Ductwork

Duct problems fall into several categories, all of which reduce airflow:

• Undersized ducts. The duct cross-sectional area is too small for the required CFM. This is a design problem, not a maintenance issue. Common in older homes and builder-grade installations.
• Collapsed or crushed flex duct. Flex duct sagging between supports or compressed at turns reduces the effective diameter. A section of flex duct bent 90 degrees can lose 50% or more of its airflow capacity.
• Disconnected ducts. A duct that has separated at a boot, takeoff, or joint leaks conditioned air into the attic or crawlspace instead of delivering it to the register.
• Excessive length and turns. Long duct runs with multiple elbows accumulate friction losses. Each 90-degree elbow adds the equivalent of 10-15 feet of straight duct.

What to do:

1. Visually inspect accessible ductwork for damage, disconnections, and sagging.
2. Measure the supply and return static pressure at the air handler. If TESP is high but filter and coil pressure drops are normal, the remaining restriction is in the ductwork.
3. If the duct system has dampers, check their positions.

Step 4: Check the Blower

The blower may not deliver rated airflow even with clean ducts and filters if it has a mechanical problem.

• Dirty blower wheel. Dirt buildup on the blower wheel blades reduces the wheel's ability to move air. The motor runs but output drops. This is a common finding on systems that have run for years without maintenance.
• Belt slippage. On belt-drive blowers, a worn or loose belt reduces blower speed. Check belt tension and condition.
• ECM at maximum speed. An ECM (electronically commutated motor) in constant-airflow mode increases speed to compensate for duct restriction. If the motor has reached its maximum speed and still cannot deliver target airflow, the restriction exceeds the motor's capability. The motor's diagnostic output (LED codes or software readout) may indicate this condition.
• Failing capacitor (PSC motors). A weak run capacitor reduces motor torque and speed. The blower runs but slower than rated. Measure the capacitor with a meter; it should be within +/-5% of rated microfarads.

What to do:

1. Inspect the blower wheel for dirt buildup.
2. Check belt condition on belt-drive systems.
3. Verify blower speed setting matches the system requirements.
4. On PSC motors, measure the run capacitor.

Step 5: Check Return Sizing

Undersized returns are common, especially in older homes that were originally built with one central return. Over the years, the system tonnage may have increased while the return ductwork remained the same size.

What to do:

1. Measure the return static pressure. High negative pressure at the return (more negative than -0.20" WC at the return grille) suggests restriction.
2. Count the number and size of return grilles. A rule of thumb for return sizing: 1 square foot of net free area per ton of cooling capacity (for standard grilles with 50% free area, that means 2 square feet of grille face per ton).
3. If the return is severely undersized, adding a return grille or enlarging the existing one is the correction.

Using the TESP Budget

The TESP budget (E11) breaks total external static pressure into its component parts. This is the most efficient diagnostic tool for low airflow because it tells you where the restriction is, not just that restriction exists.

The Budget Approach

1. Measure TESP (total pressure drop from return to supply).
2. Measure pressure drop across the filter.
3. Measure pressure drop across the evaporator coil.
4. The remainder (TESP minus filter drop minus coil drop) is the ductwork contribution.

Example:

The manufacturer's maximum TESP spec is 0.50" WC. This system exceeds it by 0.25". The filter accounts for the largest single component at 0.25". Replacing the filter would likely reduce TESP to around 0.55" (still above spec but significantly improved). The return duct and supply duct together account for 0.35", which is normal for a typical residential system.

The TESP budget prevents wasting time on components that are not contributing to the problem. If the filter is 0.08" and the coil is 0.12", the ductwork is carrying the entire excess pressure drop, and no amount of filter changing or coil cleaning will fix the airflow.

The 70%+ TESP Problem in Context

measureQuick's field data (V12, 115,706 quality-filtered cooling tests) shows that more than 70% of tested systems exceed 0.5" total external static pressure. This means low airflow is not an occasional finding; it is the dominant condition in the installed residential HVAC base.

The implications:

• A system operating at 0.70" TESP instead of the rated 0.50" delivers roughly 10-15% less airflow than rated, depending on the blower type (PSC motors lose more airflow at high static than ECM motors).
• At 1.0" TESP, airflow can drop 25-30% below rated on PSC systems.
• Most of the excess static comes from filter restriction, duct undersizing, or both. Coil fouling adds to the problem over time.

When you find a system with low airflow, you are not finding an anomaly. You are identifying a condition that affects the majority of installed systems. The value of the diagnosis is in quantifying the problem, identifying the cause, and documenting the improvement after correction.

Connecting Symptoms to Causes

Tips & Common Issues

System has low airflow but the homeowner says it has always been that way

Many systems are installed with inadequate airflow from day one due to undersized ductwork. The homeowner adapts to the comfort level and does not realize the system is underperforming. Document the measured CFM and CFM per ton, compare to the equipment specification, and present the findings factually. A system running at 280 CFM per ton since installation has never performed to its rated capacity.

TESP is high but I cannot determine which component is causing it

Use the component pressure drop measurements (I8). If you only have total TESP, you are guessing at the cause. Adding a single set of measurements across the filter and coil narrows the diagnosis significantly.

Airflow improved after filter replacement but is still below target

The filter was one contributor, but not the only one. Proceed to Step 2 (coil inspection) and Step 3 (duct inspection). Multiple restrictions often stack: a moderately dirty filter plus a moderately dirty coil plus slightly undersized ductwork can combine to produce severely low airflow, even though no single component appears grossly deficient.

Low airflow on a new installation

If the system is recently installed and airflow is below target, the cause is almost always duct design or installation quality. Check flex duct routing for compression and sharp bends, verify the blower speed tap matches the design, and confirm the return sizing is adequate for the system tonnage.
