What You'll Learn

• Where to place each probe on the outdoor unit for accurate cooling diagnostics
• Why placement location affects superheat, subcooling, and discharge temperature readings
• How to avoid the most common placement mistakes that produce false failures
• How outdoor probes contribute to the Vitals Score and minimum probe requirements
• When to insulate probes and why it matters for measurement accuracy

What You'll Need

• Device: iPhone (iOS 15+) or Android phone/tablet (Android 10+) with measureQuick installed
• Account: measureQuick account with probes paired (see Bluetooth Pairing Basics)
• Probes: Pipe clamp temperature probes (3), ambient temperature probe (1), pressure probes or manifold (2 ports)
• Insulation: Pipe insulation tape or foam for temperature clamps
• Equipment access: Running outdoor unit (condenser or heat pump in cooling mode)
• Time: 10 minutes to read; 5 minutes to deploy probes in the field

The Outdoor Probe Set

A full outdoor probe deployment uses six measurement points. Four are temperature probes and two are pressure probes. Together, these provide the raw data measureQuick needs to calculate superheat, subcooling, discharge superheat, and Condensing Temperature Over Ambient (CTOA).

measureQuick requires 9+ physical probe channels for a full Vitals Score on cooling or heating diagnostics. The outdoor probes account for 4 to 6 of those channels depending on your setup.

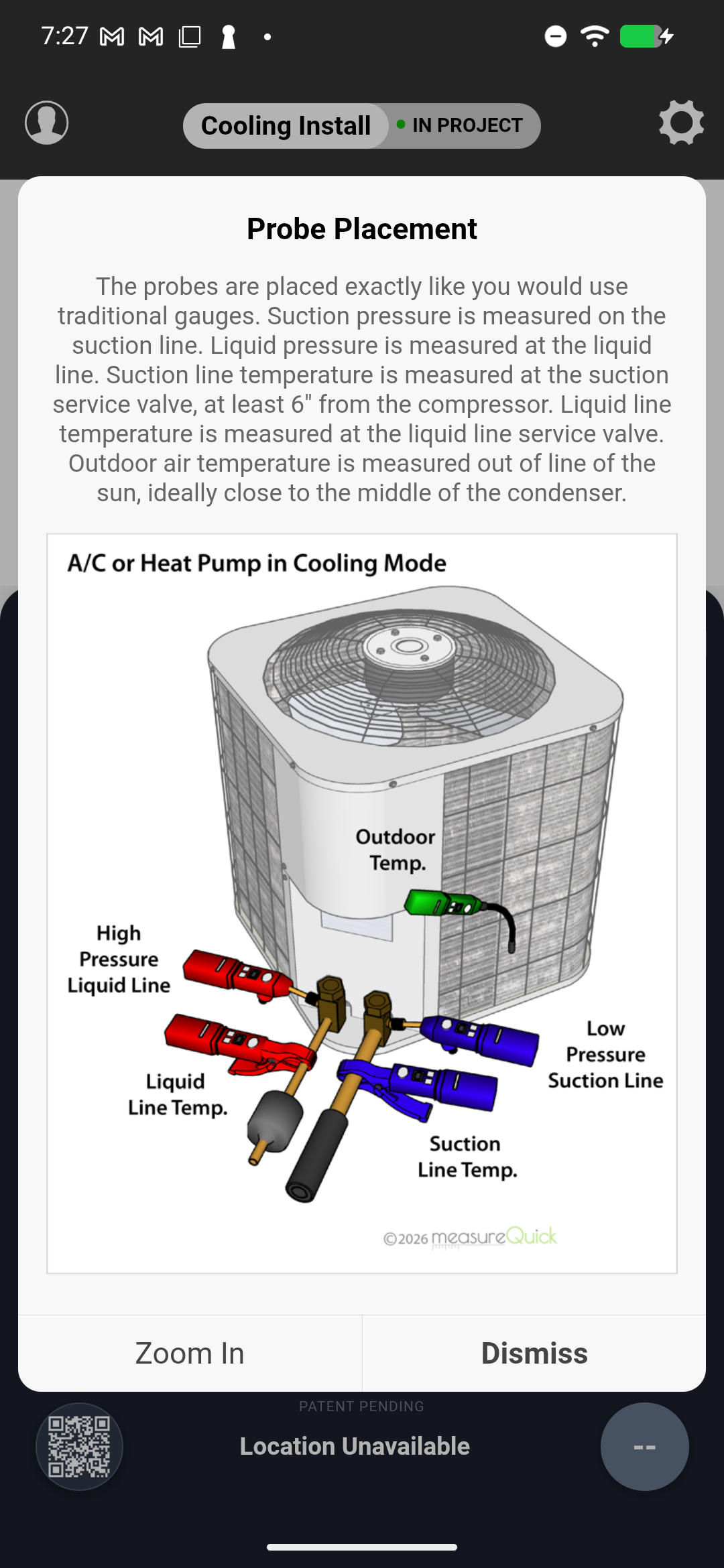

Deploy Outdoor Probes diagram showing all six measurement points on a condenser unit

Probe-by-Probe Placement

1. Suction Line Temperature Probe

What it is: The suction line is the larger-diameter copper pipe connecting the evaporator (indoor coil) to the compressor. It carries low-pressure refrigerant vapor back to the compressor.

Where to place it: Clamp the pipe clamp temperature probe on the suction line, approximately 6 inches from the service valve at the outdoor unit. The probe must make full contact with the pipe surface.

Why this location: Measuring close to the service valve gives you the suction temperature at the same point where the suction pressure probe reads. Superheat is calculated as the difference between suction line temperature (this probe) and evaporating temperature (derived from suction pressure). If the temperature and pressure are measured at different points along the line, line losses introduce error.

Insulate the probe. After clamping, wrap the probe and the surrounding pipe section with insulation tape or foam. Without insulation, the ambient air temperature influences the reading. On a hot day with 95F outdoor air and a 55F suction line, an uninsulated probe can read 5-10F high, overstating superheat by that amount.

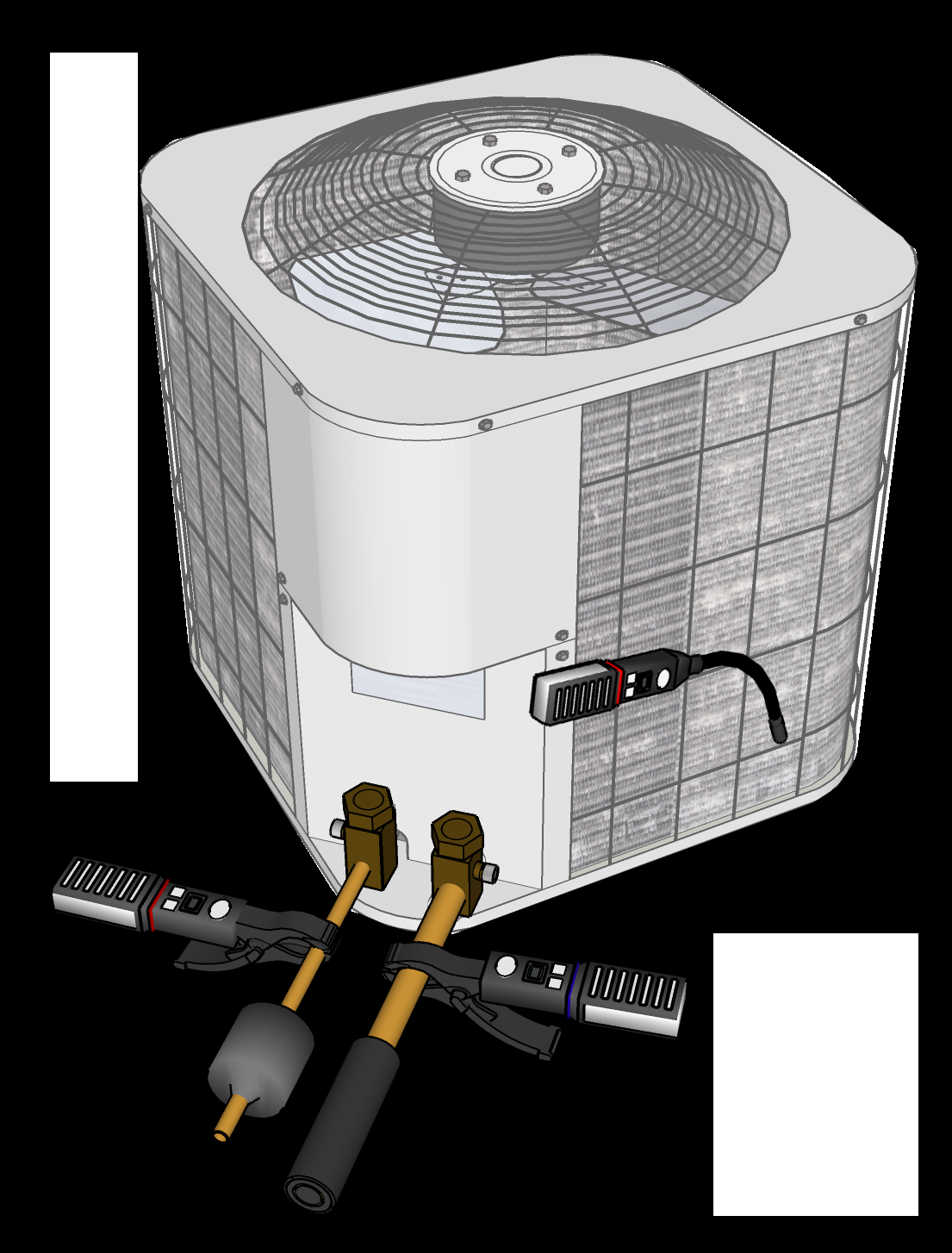

Suction line pipe clamp installed 6 inches from service valve, insulated with foam wrap

Common mistakes:

• Clamping on the wrong pipe. The suction line is the larger pipe. If you clamp on the liquid line (smaller pipe) by mistake, you will see a temperature near condensing rather than near evaporating, and the app's superheat value will be far outside normal range.
• Placing the clamp too far from the service valve. Temperature changes along the suction line due to heat gain from the environment. The further from the valve, the more the reading diverges from the pressure measurement point.
• Skipping insulation. This is the single most common source of inflated superheat readings in the field.

2. Liquid Line Temperature Probe

What it is: The liquid line is the smaller-diameter copper pipe that carries subcooled liquid refrigerant from the condenser to the metering device. It runs between the outdoor unit and the indoor unit.

Where to place it: Clamp the pipe clamp temperature probe on the liquid line, approximately 6 inches from the service valve at the outdoor unit.

Why this location: Subcooling is calculated as the difference between condensing temperature (derived from high-side pressure) and liquid line temperature (this probe). Measuring close to the service valve keeps the temperature and pressure reference points aligned. Further down the liquid line toward the indoor unit, heat gain from the environment warms the liquid and reduces the apparent subcooling.

Insulate the probe. The liquid line runs warmer than the suction line (typically 80-110F depending on conditions), so the ambient influence is smaller. But on extremely hot days or when the liquid line runs through direct sunlight, insulation still matters. Insulate it the same way you insulate the suction line probe.

Liquid line pipe clamp installed 6 inches from service valve, insulated

Common mistakes:

• Placing the clamp on a section of liquid line that runs through direct sunlight for several feet before reaching the probe. Solar heating can raise the liquid line temperature and make subcooling appear lower than it is.
• Not making full pipe contact. Pipe clamps must close firmly around the pipe. A loose clamp reads closer to ambient than to the actual pipe temperature.
• Confusing the liquid line with the suction line. The liquid line is smaller in diameter. If your readings seem reversed (low temperature on what should be the liquid line), check which pipe is which.

3. Discharge Line Temperature Probe

What it is: The discharge line runs from the compressor outlet to the condenser coil inlet. It carries high-pressure, superheated refrigerant vapor. This is the hottest pipe on the system and can exceed 200F during normal operation.

Where to place it: Clamp the pipe clamp temperature probe on the discharge line between the compressor discharge port and the point where the pipe enters the condenser coil. Place it as close to the compressor as access allows, but far enough away that the probe is not touching the compressor housing.

Why this location: Discharge temperature indicates compressor health. The app uses it to calculate discharge superheat (discharge line temperature minus condensing temperature). Abnormally high discharge temperatures signal problems: low charge, high compression ratio, failed valves, or restricted airflow across the condenser. Measuring close to the compressor captures the true discharge condition before any heat dissipation along the line.

Insulation is less critical here because the discharge line temperature is far above ambient. A 220F pipe in 95F air loses less percentage accuracy to ambient influence than a 55F suction line does. That said, insulating does not hurt, and some technicians insulate all clamps as standard practice.

Discharge line pipe clamp installed between compressor and condenser coil entry point

Common mistakes:

• Clamping on the condenser coil tubing instead of the discharge line. The condenser coil tubing is inside the unit and temperatures drop rapidly as refrigerant condenses. The discharge line is the section of pipe before the coil.
• Placing the clamp where it contacts the compressor shell. The compressor shell radiates heat and can raise the reading above the actual discharge gas temperature.
• Ignoring an unusually low discharge temperature. If discharge temp is lower than expected, the probe may have slipped or the clamp may not have full pipe contact.

4. Ambient Temperature Probe

What it is: The ambient temperature probe measures outdoor air temperature near the condenser. The app uses this for the CTOA (Condensing Temperature Over Ambient) calculation: condensing temperature minus ambient temperature. CTOA is a primary indicator of condenser performance and is affected by equipment efficiency (SEER rating), airflow across the condenser coil, and refrigerant charge.

Where to place it: Position the ambient probe in the shade, at condenser height, within 3-5 feet of the unit. Keep it away from:

• Condenser exhaust air. The fan blows hot air upward (top-discharge units) or outward (side-discharge units). If the ambient probe sits in the exhaust stream, it reads 10-20F above actual ambient.
• Direct sunlight. A probe in direct sun can read 5-15F above actual air temperature due to solar radiation heating the sensor.
• Building surfaces. Walls, concrete pads, and roofs radiate stored heat. Keep the probe in open air, not resting on or against a hot surface.

The goal is to measure the temperature of the air entering the condenser coil, not the air leaving it.

Ambient temperature probe placed in shade near condenser, away from exhaust discharge and direct sunlight

Common mistakes:

• Placing the probe on top of the condenser. Top-discharge units blow hot air straight up. A probe on the unit housing reads exhaust temperature, not ambient.
• Letting the probe hang in direct sun. Even a few minutes of solar exposure biases the reading upward.
• Using the app's weather data instead of a physical ambient probe. Weather station data reflects conditions at the reporting station, not at the job site. Microclimates, reflected heat from buildings, and elevation differences can produce a 5-10F discrepancy. A physical ambient probe at the condenser is always more accurate.

5. Suction Pressure Probe (Low Side)

What it is: The suction pressure probe connects to the suction service port (low-side service valve) on the outdoor unit. It measures the low-side refrigerant pressure, which the app converts to evaporating temperature using the P/T relationship for the selected refrigerant (see Pressure-Temperature Relationship).

Where to connect it: Attach your pressure probe or manifold hose to the suction service port. This is the larger service valve, typically located on the suction line where it enters the outdoor unit.

Before connecting: Confirm the refrigerant type in your system profile matches the actual system. The P/T conversion depends on the correct refrigerant selection. An R410A system profiled as R22 produces meaningless evaporating temperature values.

Practical note: If using a digital manifold (Fieldpiece SMAN, Testo 557s, etc.), the manifold reads pressure through its internal transducers and transmits it to measureQuick over Bluetooth. If using standalone wireless pressure probes (Fieldpiece JL3PR), each probe connects directly.

Common mistakes:

• Connecting to the wrong service port. Low side (suction) is the larger valve. High side (liquid/discharge) is the smaller valve. Reversed connections swap your evaporating and condensing temperatures.
• Forgetting to purge hoses. Air trapped in manifold hoses adds to the pressure reading. Purge hoses before recording measurements.
• Leaving the Schrader valve depressor stuck. A stuck depressor causes a slow refrigerant leak throughout the test.

6. Liquid/Discharge Pressure Probe (High Side)

What it is: The high-side pressure probe connects to the liquid/discharge service port on the outdoor unit. It measures the high-side refrigerant pressure, which the app converts to condensing temperature using the P/T relationship.

Where to connect it: Attach your pressure probe or manifold hose to the liquid/discharge service valve. This is the smaller service valve, located on the liquid line where it exits the outdoor unit.

Why it matters: Condensing temperature (from this pressure reading) is used to calculate both subcooling and CTOA. If this reading is wrong, both values are wrong.

Common mistakes:

• Same service port confusion as the low side. Double-check: smaller valve = high side.
• Using a gauge rated for the wrong pressure range. High-side pressures on R410A systems routinely exceed 400 PSI during hot weather. Make sure your gauge or transducer is rated for the expected range.

Deployment Order

There is no strict order, but this sequence minimizes wasted time:

1. Pressure probes first. Connect manifold or pressure probes to the service ports before the system is running (if possible) or while it stabilizes.
2. Discharge line clamp. Place it while you are close to the compressor.
3. Suction line clamp. Place and insulate.
4. Liquid line clamp. Place and insulate.
5. Ambient probe last. Find a shaded spot near the unit and position it.

Once all probes are streaming live data, check the measureQuick workflow screen. All six outdoor measurement slots should show live values. If any slot is blank or shows a dash, that probe is not connected or not assigned to the correct channel.

Outdoor Measurements screen showing live pressure and temperature readings from all six probes

How Placement Affects Diagnostics

Every one of these errors is avoidable with correct probe placement. The data in measureQuick is only as good as the measurements feeding it.

Video Walkthrough

• Why Do You Need All 9 Probes With measureQuick? (1:42, 5.8K views): - Jim Bergmann explains what each of the 9 probes contributes to the diagnostic picture

• Probe Placement (7:43): - Dedicated probe placement walkthrough covering outdoor and indoor positions

• Probe placement for heat pump heating mode (1:41, 22K views): - Demonstrates outdoor probe positioning on a heat pump, including the reversed suction/liquid line orientation in heating mode

• Cooling Commissioning Measurements Walk Through w/ MeasureQuick (80 min, 13K views): - Full commissioning walkthrough covering outdoor probe deployment in detail. Transcript note: Jim Bergmann emphasizes that when you walk up to equipment, "you expect the suction line to be cool, you expect the liquid line to be warm" as a touch-check before clamping probes

• How to Use MeasureQuick App w/ Jim Bergmann (72 min): - Complete app walkthrough including outdoor probe setup and live measurement capture

Tips & Common Issues

Quick touch-check before clamping

Before attaching pipe clamps, touch the suction and liquid lines by hand. The suction line should feel cool; the liquid line should feel warm to hot. If those sensations are reversed, the lines may be mislabeled or you may be looking at a heat pump in heating mode. This takes two seconds and prevents the most basic identification error. Jim Bergmann describes this as the first thing to check when walking up to outdoor equipment.

Probes out of Bluetooth range

On some jobs, you cannot stand in one spot and receive Bluetooth signals from both indoor and outdoor probes simultaneously. measureQuick has a "Hold" button at the top right of the Indoor Measurements and Outdoor Measurements screens. Tap Hold to lock the current readings for that page, then walk to the other unit. The held values persist until you release them. Be aware that held readings do not update if conditions change, so verify accuracy before saving a test snapshot.

My superheat reading is higher than expected

Check the suction line clamp first. Is it insulated? Is it making full contact with the pipe? Is it actually on the suction line (large pipe) and not the liquid line? Uninsulated suction clamps are the most frequent cause of inflated superheat readings in the field.

My subcooling reading seems low

Check the liquid line clamp. Is it in direct sunlight? Is the clamp tight against the pipe? A loose clamp or a sun-heated section of liquid line produces artificially low subcooling values.

CTOA seems too low (condenser looks fine but CTOA is below target)

Check the ambient probe. If it is in the condenser exhaust stream or in direct sunlight, the ambient reading is artificially high. Since CTOA = condensing temperature minus ambient, an inflated ambient reading reduces the CTOA value and masks real condenser issues.

The app shows dashes for some outdoor measurements

That probe is not connected or not assigned to a measurement channel. Open the Probe Manager, verify each probe shows a live reading, and confirm each one is assigned to the correct channel (suction temp, liquid temp, discharge temp, ambient temp, suction pressure, discharge/liquid pressure).

I only have pipe clamps and no pressure probes

measureQuick can perform non-invasive (temperature-only) testing without pressure probes. The app estimates pressures from temperatures and the selected refrigerant type. Results are useful for screening, but for a full diagnostic with a Vitals Score, physical pressure probes are needed. See Non-Invasive Testing for details.

Heat pump in heating mode - are the lines reversed?

Yes. In heating mode, the outdoor coil is the evaporator (not the condenser). The larger pipe at the outdoor unit becomes the discharge line, and the smaller pipe becomes the suction line. Probe placement for heating mode is covered in Heat Pump Heating Mode Probes.
